CDH-0.8T
SUPER FISHER / OEM
| Quantity: | |
|---|---|

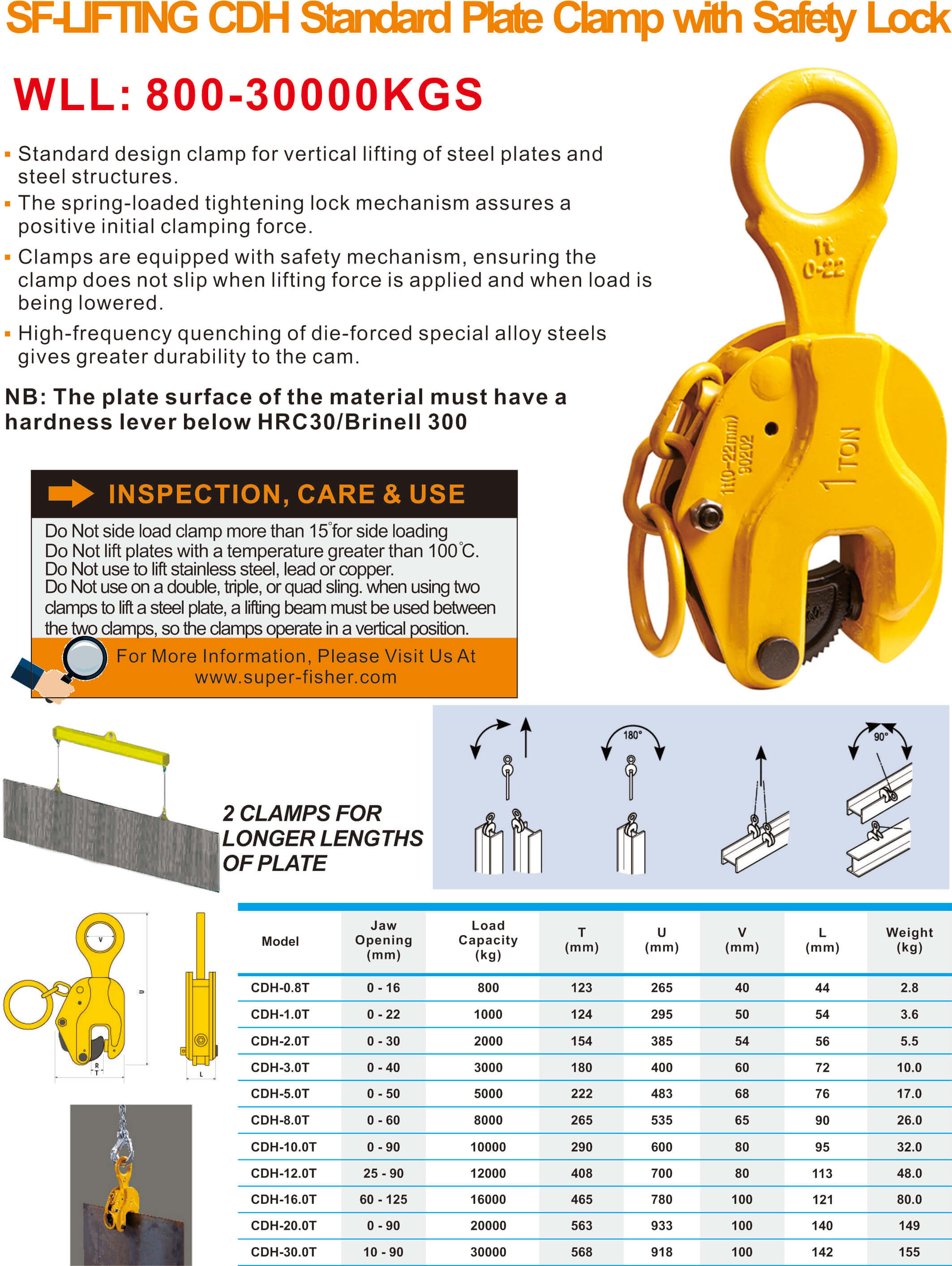

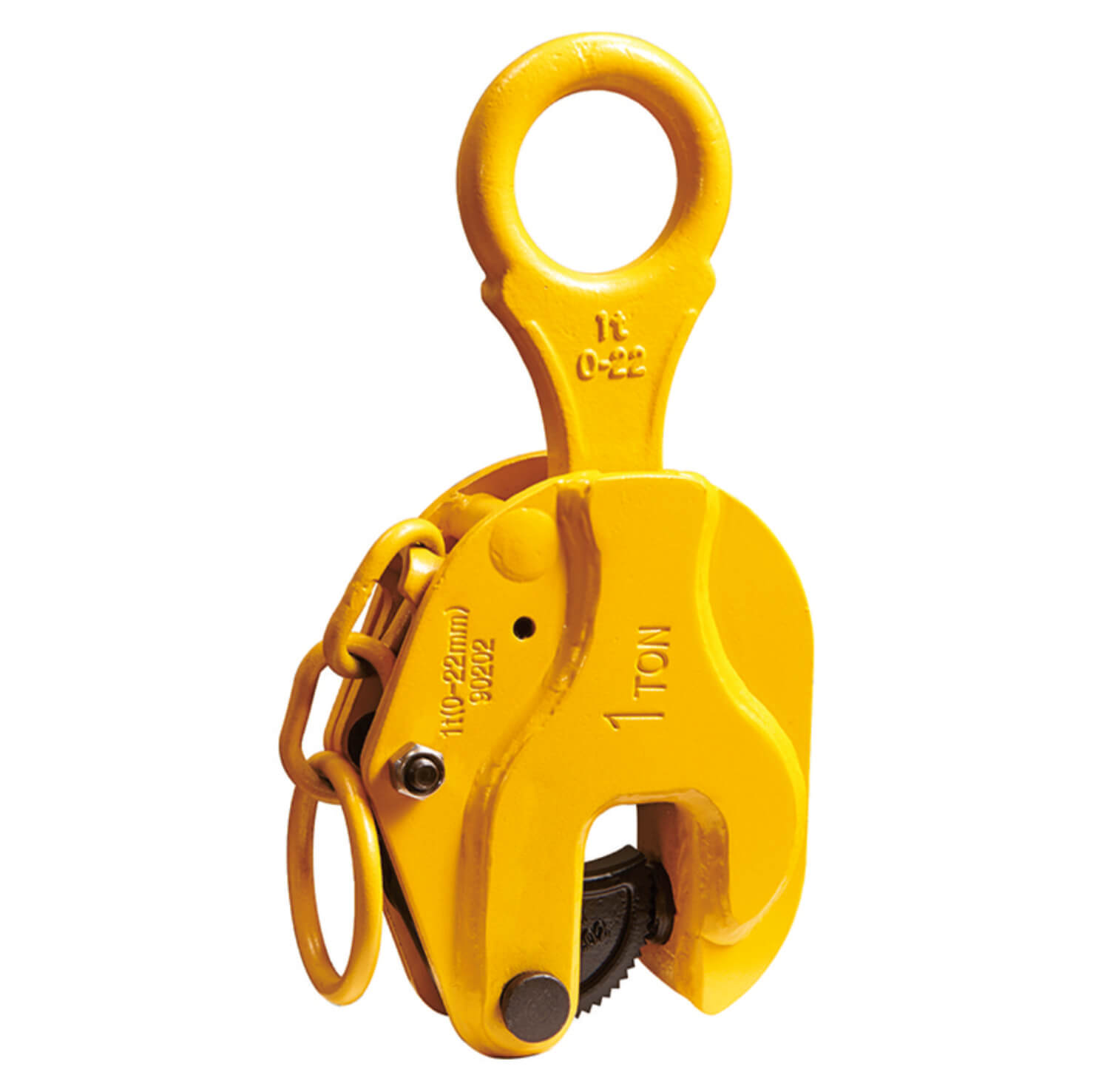

CDH Standard Vertical Plate Clamp with Safety Lock
WLL: 800 - 30000 KGS
>Standard design clamp for vertical lifting of steel plates and steel structures.
>The spring-loaded tightening lock mechanism assures a positive initial clamping force.
>Clamps are equipped with safety mechanism,
ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
>High-frequency quenching of die-forced special alloy steels gives greater durability to the cam.
***NB: The plate surface of the material must have a hardness lever below HRC30/Brinell 300
CDH Standard Vertical Plate Clamp with Safety Lock
WLL: 800 - 30000 KGS
>Standard design clamp for vertical lifting of steel plates and steel structures.
>The spring-loaded tightening lock mechanism assures a positive initial clamping force.
>Clamps are equipped with safety mechanism,
ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
>High-frequency quenching of die-forced special alloy steels gives greater durability to the cam.
***NB: The plate surface of the material must have a hardness lever below HRC30/Brinell 300
