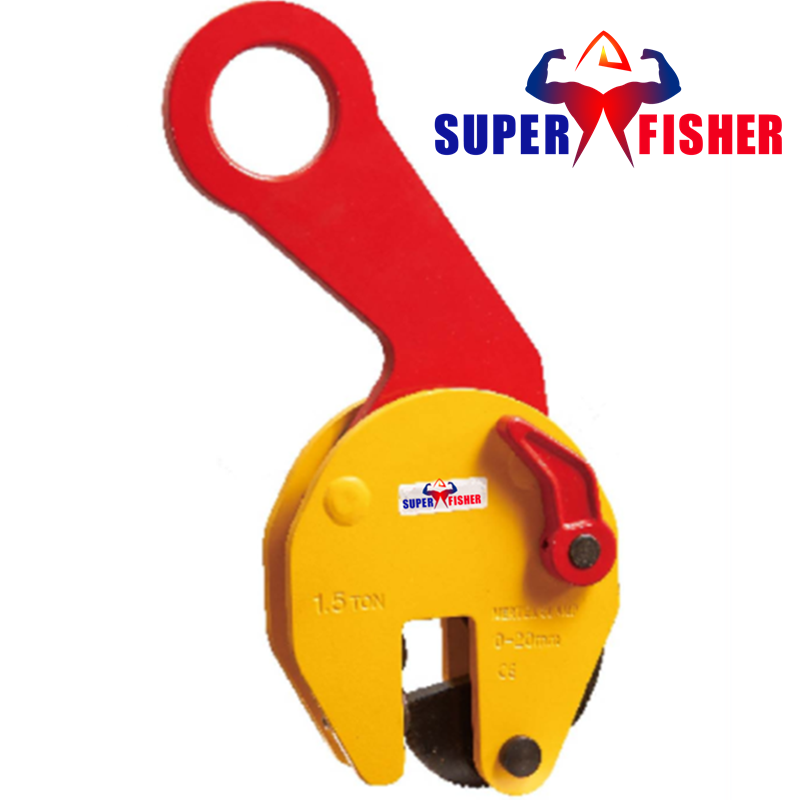

TBK Vertical clamp for steel beams

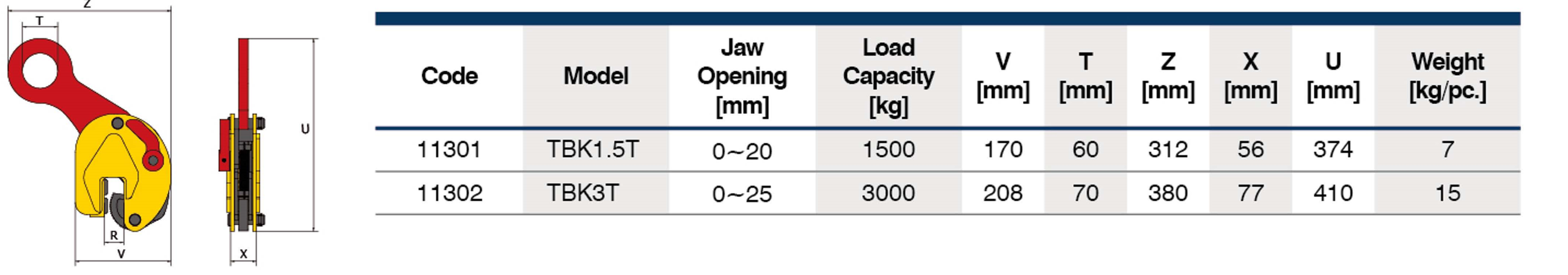

WORKING LOAD LIMIT (WLL)1500-3000KGS

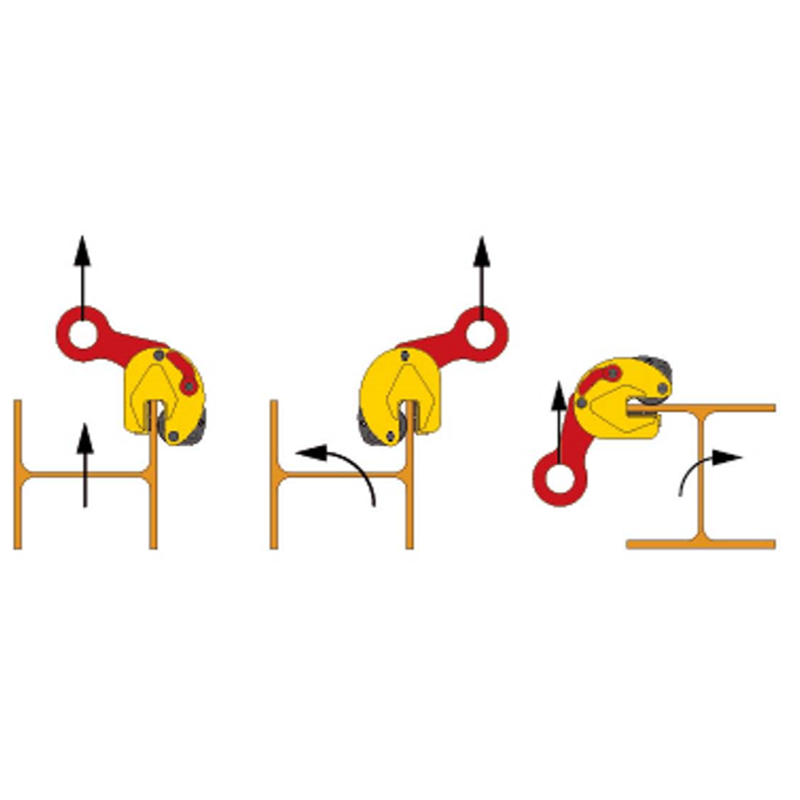

For lifting and transporting steel beams, profiles and structures where the load must stay in position.
The special shape of the lifting shackle places the center of the gravity of the beam beneath the lifting shackle. This maintains the equilibrium of the beam once it has been lifted and keeps the flanges vertical so that the beam can easily be stacked or positioned.
Recommend for transporting and stacking of steel beams
***NB: The plate surface of the material must have ahardness lever below HRC30/Brinell 300
INSPECTION, CARE & USE

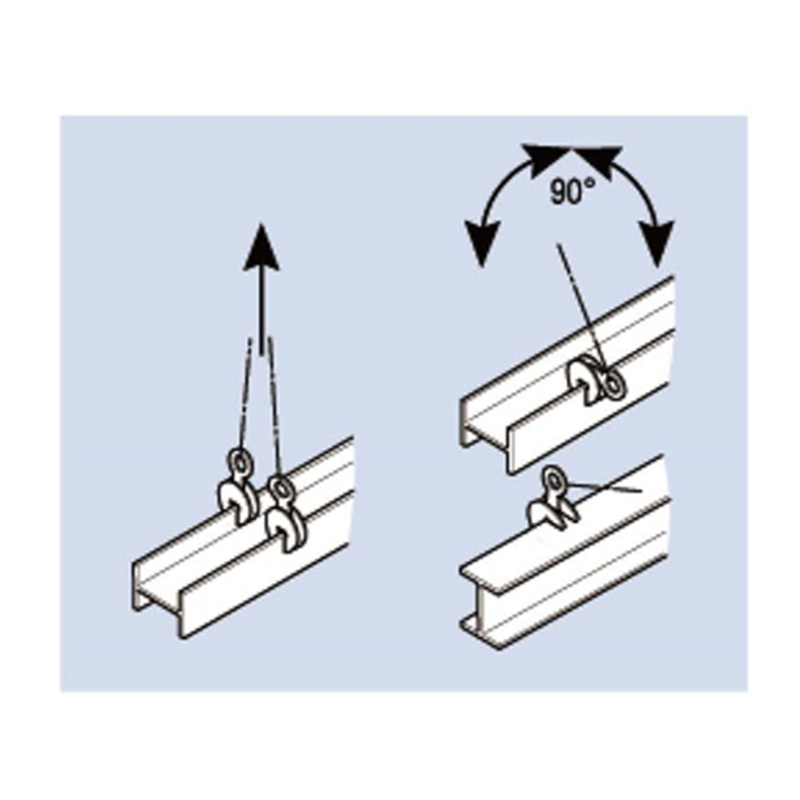

DO NOT exceed 6°angle when lifting
DO NOT lift plates with a temperature greater than 100ºC
DO NOT use to lift stainless steel lead or copper
TBK Vertical clamp for steel beams
WORKING LOAD LIMIT (WLL)1500-3000KGS
For lifting and transporting steel beams, profiles and structures where the load must stay in position.
The special shape of the lifting shackle places the center of the gravity of the beam beneath the lifting shackle. This maintains the equilibrium of the beam once it has been lifted and keeps the flanges vertical so that the beam can easily be stacked or positioned.
Recommend for transporting and stacking of steel beams
***NB: The plate surface of the material must have ahardness lever below HRC30/Brinell 300
INSPECTION, CARE & USE
DO NOT exceed 6°angle when lifting
DO NOT lift plates with a temperature greater than 100ºC
DO NOT use to lift stainless steel lead or copper
