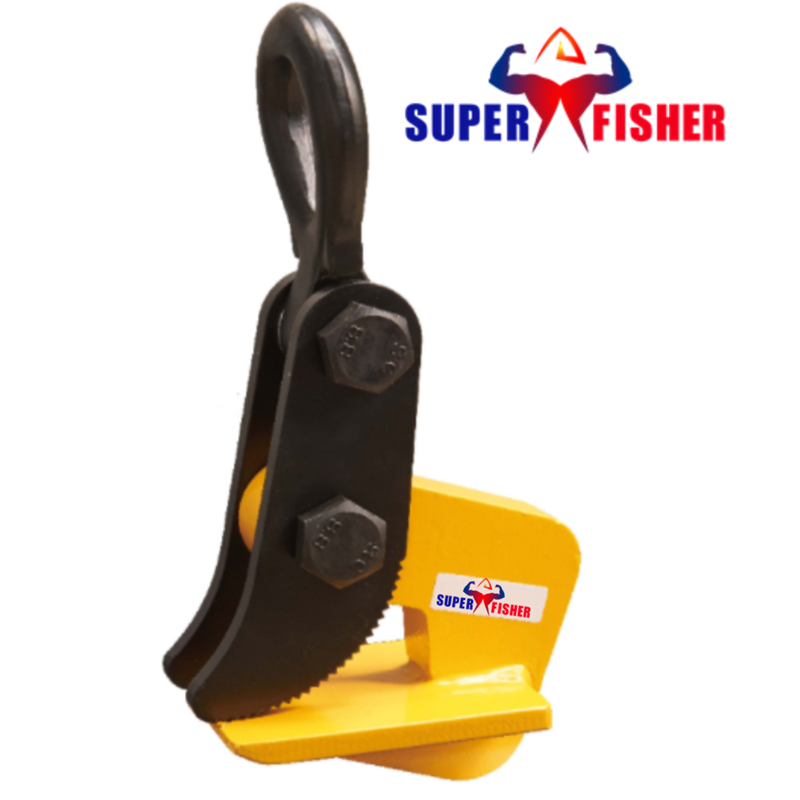

TCH Industry standard horizontal plate clamps

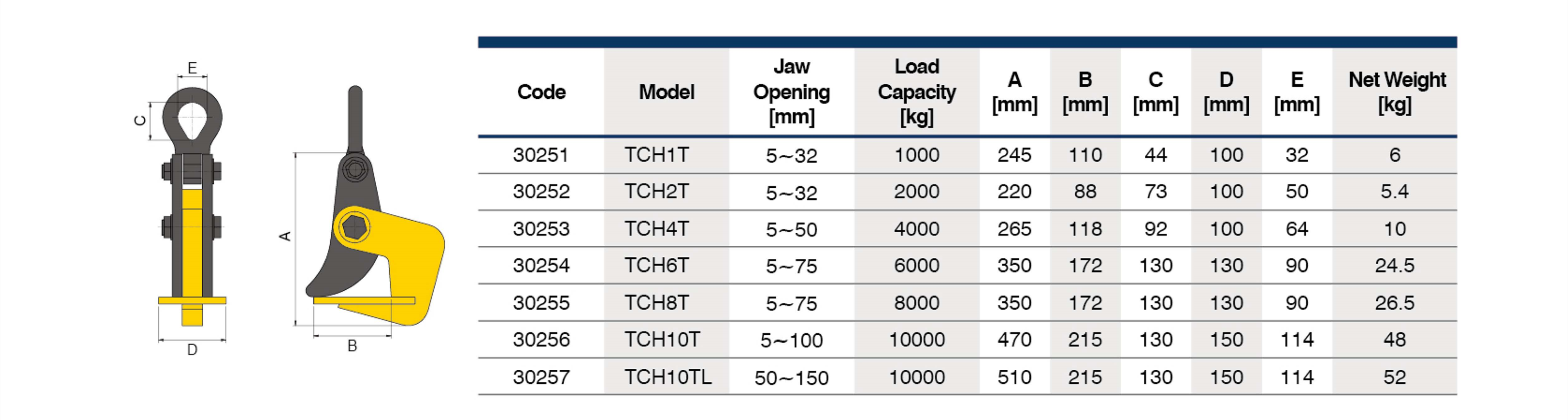

WORKING LOAD LIMIT(WLL)500-30000KGS

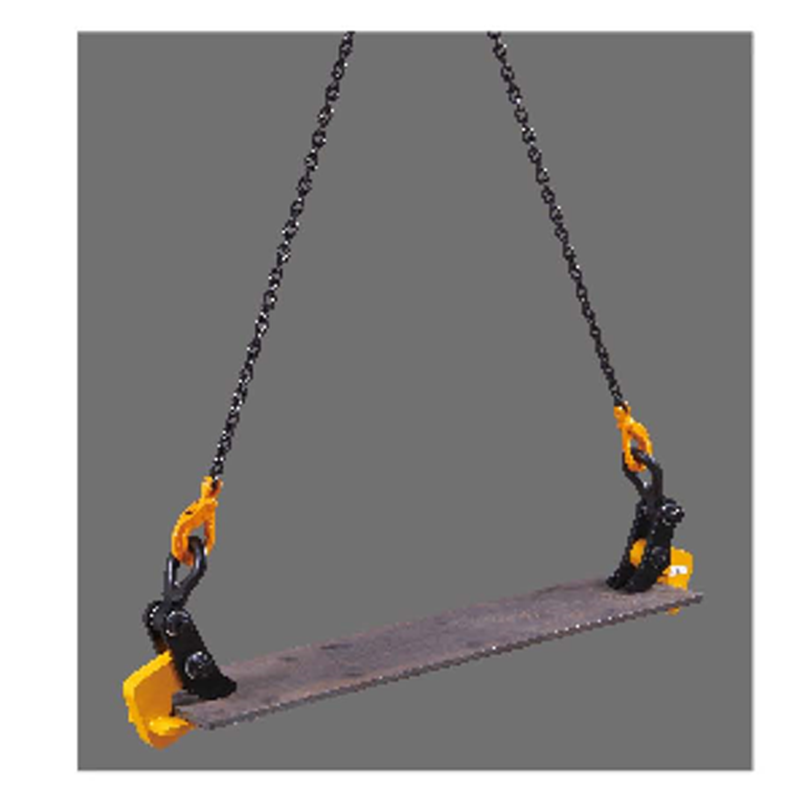

The TCH horizontal plate clamps have been specifically designed to be used, in pairs, for the transportation of plate bundles as well as single plates with a minimum thickness of 5mm.
A pair of clamps used with a two legged chain sling are suitable for small plates up to 1500mm in length. lt is recommended to use two pairs in conjunction with a spreader beam for handling of larger plates, These units are supplied as standard with a smooth jaw. There is also the option of hardened steel teeth for special applications.
Please contact our technical department for further details.

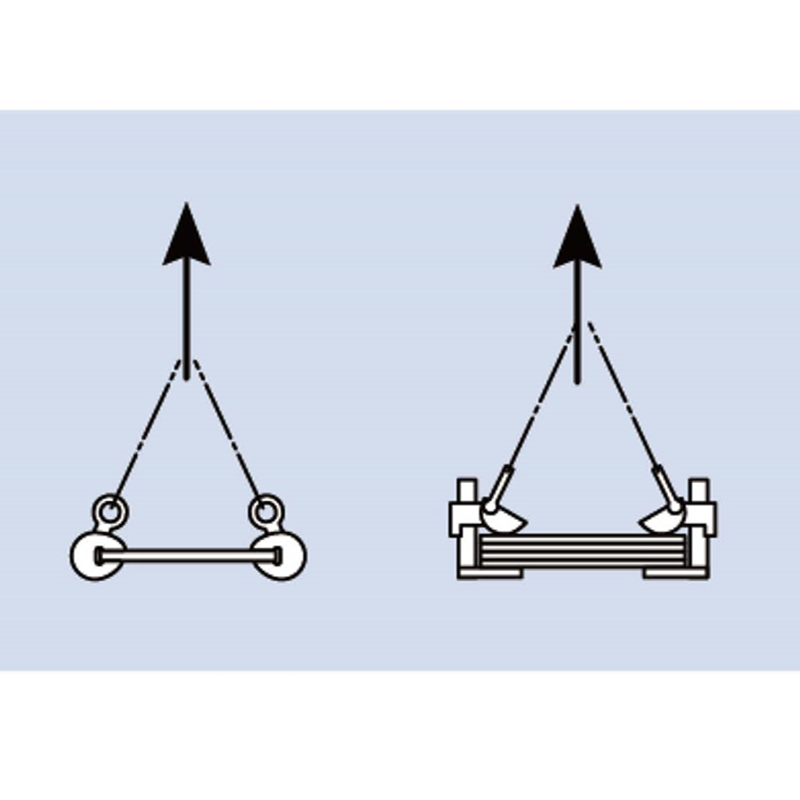

***NB: The top angle between the chain /rope legsmust not exceed 45 degree from vertical
INSPECTION, CARE & USE
DO NOT side load TCH clamps.
DO NOT use on a quad sling.When lifting long plates, use a beam or spreader bar that has a double leg sling at each end and connect clamps to the slings.
