Product Description

WLL: 500 - 30000 KGS

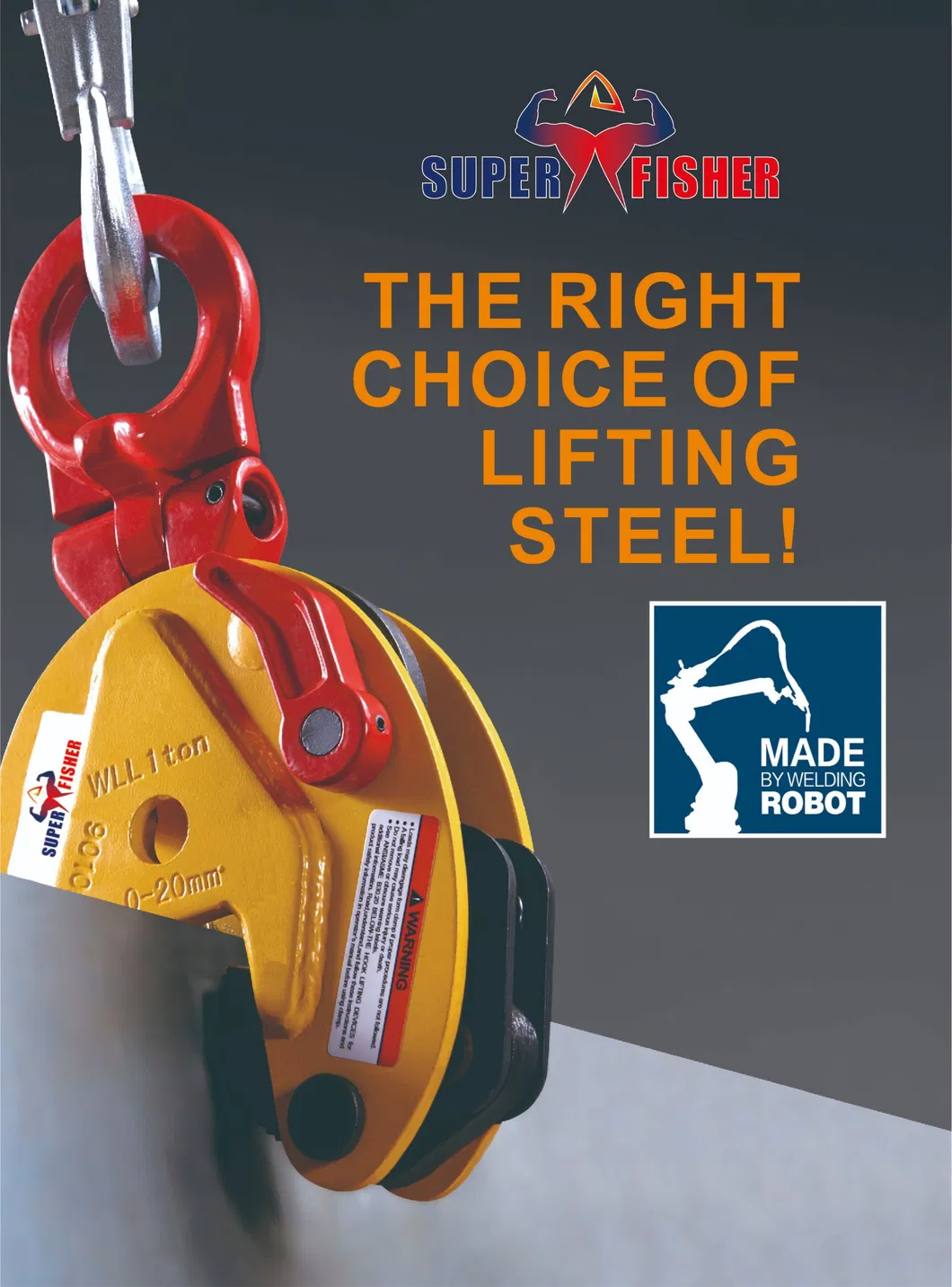

Engineered for the most demanding heavy-duty lifting environments, this CD type universal plate clamp is forged entirely from premium high-strength alloy steel. When handling massive steel structures, the tactile solidity of the clamp and the precision engineering of its moving parts instill immediate confidence on the job site. The heavy metallic finish not only resists industrial wear but also provides a secure grip for operators wearing heavy protective gloves. Every single unit strictly complies with CE and ISO international safety norms. Before leaving the manufacturing facility, each clamp is subjected to a rigorous physical pull test at a minimum of twice its Working Load Limit (WLL), ensuring absolute operational security under extreme mechanical stress.

Quality control remains uncompromising throughout the production cycle. The core load-bearing components undergo 100% Magnetic Particle Inspection (MPI) and other advanced non-destructive testing (NDT) methods to detect and eliminate any microscopic cracks or hidden structural flaws. Furthermore, the critical gripping elements—specifically the teeth and pressure pads—receive specialized high-frequency heat treatment. This thermal processing results in superior tensile strength and outstanding wear resistance, guaranteeing a long service life even under continuous, heavy-cycle usage.

>For lifting and transporting steel plates and structures from all position (horizontal, vertical and sidelong). This multi-directional capability makes it an indispensable asset in dynamic environments like shipyards, steel structure construction sites, and metal processing centers where heavy loads must be maneuvered through complex spatial constraints.

>Articulated lifting shackle. The smooth, frictionless movement of the universal hinged shackle accommodates sudden load shifts and varying angles of pull. This flexibility significantly reduces angular stress on the crane hook and ensures stable, controlled handling during complex aerial transfers.

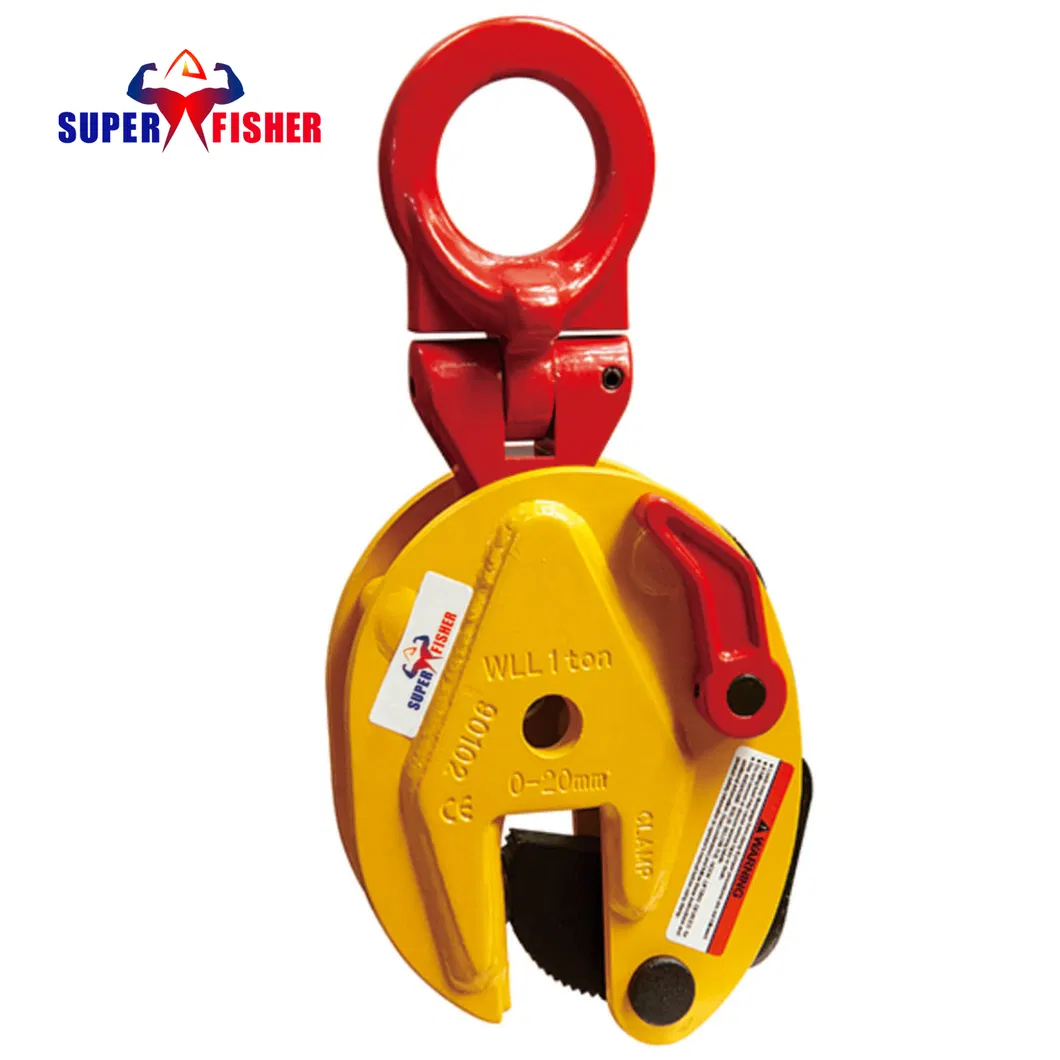

>CD lifting clamps are equipped with a pre-tension mechanism,
  ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The heavy-duty internal spring system provides an immediate, aggressive bite into the steel plate, locking it securely regardless of the initial lifting angle or sudden drops in tension.

>The clamp is locked in closed as well as in open position. Operators can feel and hear a distinct, reassuring mechanical click when the locking lever engages, providing clear auditory and tactile confirmation that the device is safely secured before hoisting operations commence.

>Minimum W.L.L is 10% of the maximum W.L.L. This crucial parameter ensures that sufficient downward pressure is maintained by the weight of the load itself, keeping the internal spring mechanism fully engaged and preventing accidental release during the entire transport cycle.

NB:The plate surface of the material must have a hardness lever below HRC30/Brinell 300. This specific requirement guarantees that the specialized, heat-treated teeth can effectively penetrate the surface of the load, creating a secure, non-slip mechanical grip without causing excessive wear or catastrophic damage to the clamp's jaw components.

CD Universal Plate Clamp Specifications

INSPECTION, CARE&USE

Proper maintenance is vital for maintaining peak safety standards. This lifting device features an intuitive, modular design that simplifies daily safety patrols and routine teardowns. We provide standardized, factory-original replacement parts—such as complete teeth and pad assemblies—which allow for rapid on-site servicing and significantly reduce the long-term cost of ownership. Always inspect the pivot points for smooth articulation and ensure the gripping surfaces remain sharp to the touch and free of heavy industrial debris.

Do not lift loads less than 10% of working load limit of clamp. Doing so prevents the pre-tension spring from achieving the necessary bite force, which could severely compromise the stability of the hold during transit.

Do not lift plates with a temperature greater than 100ºC. Excessive heat can alter the temper of the high-frequency treated alloy steel, reducing its structural integrity and gripping friction.

Do not use to lift stainess steel, lead or copper. These materials either possess surface hardness characteristics that resist the clamp's teeth or are entirely too soft, leading to dangerous slippage and potential material deformation.

Comprehensive Industrial Applications & Global Delivery

Designed specifically for the extreme demands of heavy industry, this versatile lifting solution thrives in complex, high-stakes environments. The resilient construction and fail-safe locking mechanisms make it the preferred choice across multiple demanding sectors:

• Shipbuilding & Repair Yards: Safely maneuver massive hull plates into precise alignment, regardless of the required installation angle or spatial limitations.

• Steel Structure Construction: Efficiently hoist heavy structural beams and thick plates for high-rise frameworks and expansive industrial facilities.

• Metal Processing Centers: Rapidly load and unload dense sheet metal onto CNC cutting tables and stamping presses without disrupting the facility's workflow.

• Heavy Machinery Manufacturing: Transport dense, forged components safely across the factory floor during intricate assembly processes.

Understanding the unique branding and operational needs of global enterprises, we offer comprehensive OEM customization services. Clients can request bespoke exterior paint coatings to match corporate safety color schemes, as well as custom-engraved metal nameplates for seamless asset tracking and inventory management.

To guarantee that your equipment arrives in pristine condition, ready for immediate deployment, we utilize premium packaging protocols. Each clamp is thoroughly coated with industrial-grade protective oil, emitting a faint, reassuring scent of mechanical readiness. The units are then securely anchored within reinforced, seaworthy wooden crates. This heavy-duty packaging is specifically engineered to withstand the harsh, corrosive environments of long-distance maritime shipping, ensuring your investment is protected from moisture, salt air, and physical impact from our factory directly to your facility.

Quality Control and Testing

Plate lifting clamps are load-bearing devices, so production control covers both material condition and finished product performance.

SUPER FISHER applies inspection through material, machining, assembly and finished-product stages.

Critical load-bearing components can be checked using magnetic particle inspection or other non-destructive testing methods according to the applicable production and order requirements.

The gripping teeth and pressure components receive controlled treatment intended to provide the required hardness and wear resistance for steel plate handling.

Finished clamps are load tested according to the applicable product specification and quality plan before shipment.

Test and certification documentation requirements should be confirmed when placing the order, particularly for project or distributor purchases.

More information about production inspection is available through SUPER FISHER Quality Control and Services.

OEM Plate Lifting Clamp Supply

SUPER FISHER supplies CD Universal Plate Clamps for industrial users, distributors and lifting equipment suppliers.

OEM and ODM services can include:

• Custom product color

• Customer logo

• Metal nameplate

• Product markings

• Traceability information

• Customized packaging

• Export documentation

• Required inspection documents

When requesting a quotation, provide:

• Required WLL

• Plate weight

• Plate thickness

• Material type

• Material hardness

• Quantity

• Application

• Destination market

• Packaging requirements

Providing complete plate information helps identify the correct clamp before ordering.

Freight Logistics

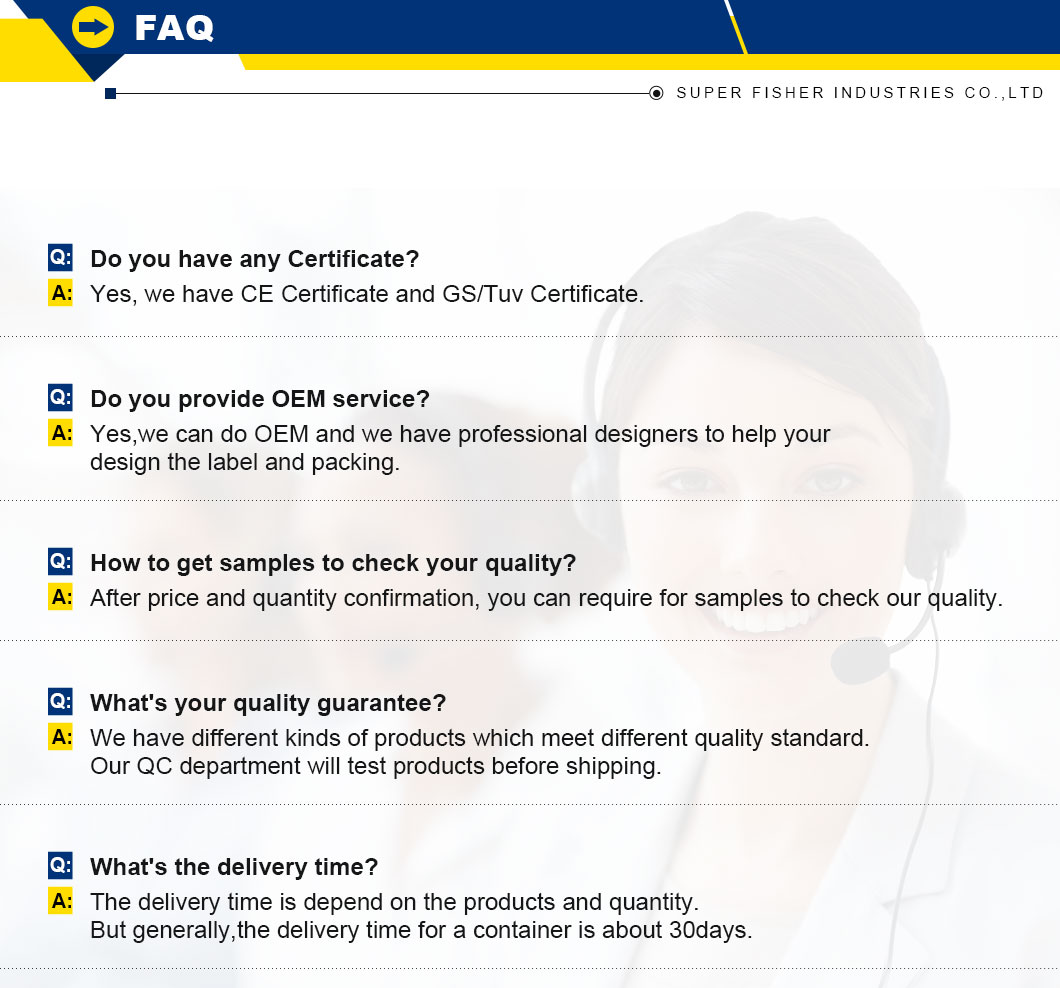

FAQ
