TMC
SUPER FISHER/ OEM
| Quantity: | |
|---|---|

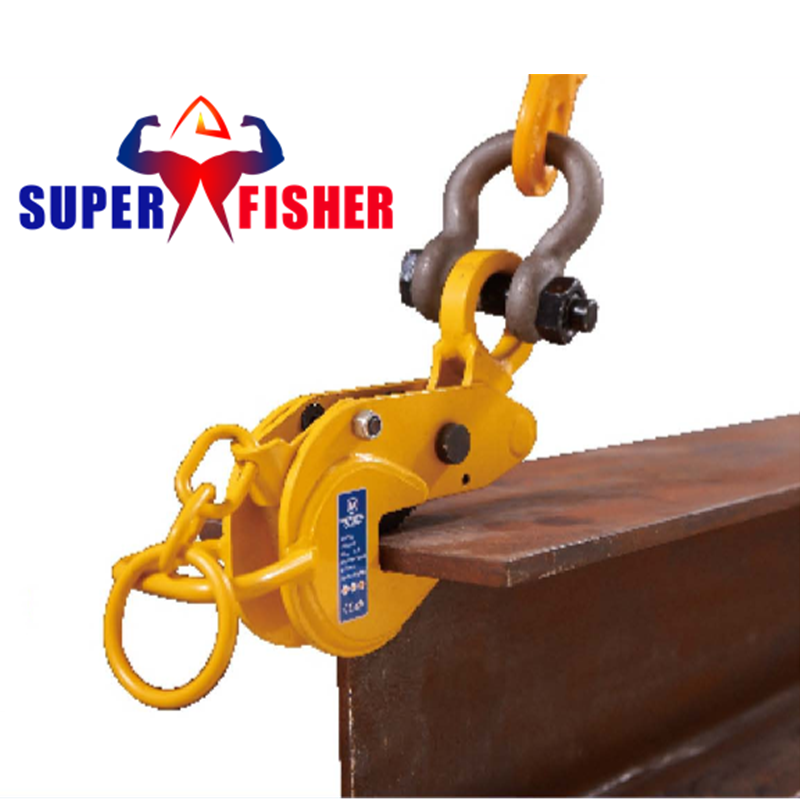

CDE PLATE CLAMP WITH SAFETY LOCK

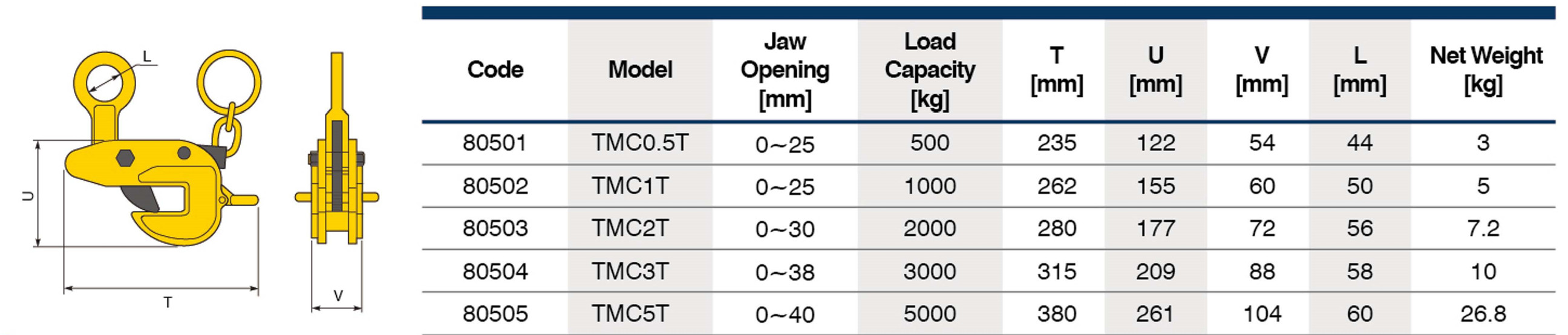

WORKING LOAD LIMIT (WLL)500-30000KGS

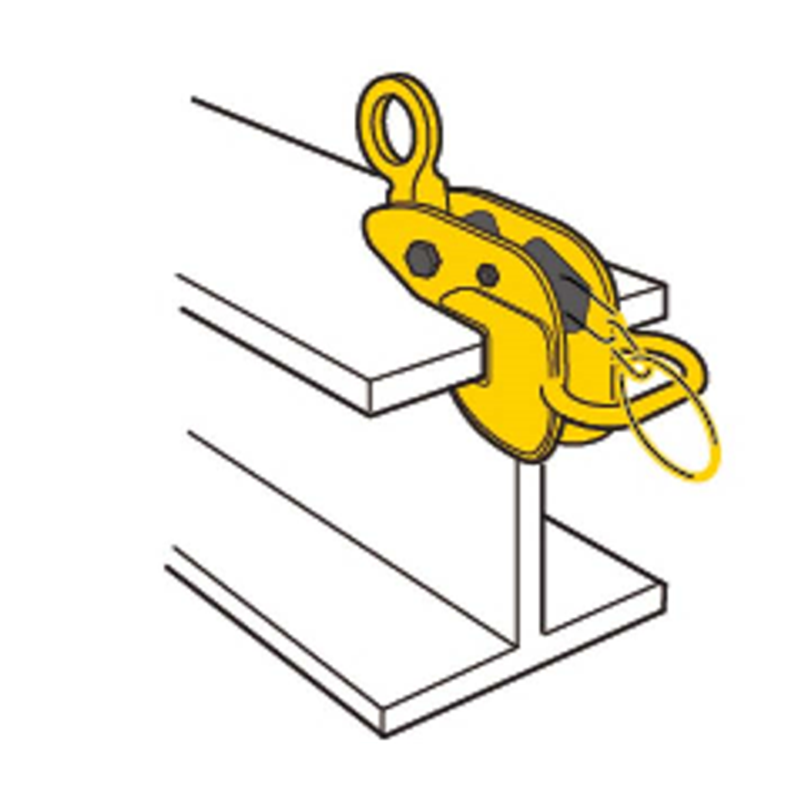

For vertical lifting and transporting of steel plates and structures.
CDE lifting clamps are equipped with a pre-tension mechanisms ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
The clamp is locked in closed as well as in open position.
Minimum W.L.L. is 10 % of the maximum W.L.L.
***NB: The plate surface of the material must have ahardness lever below HRC30/Brinell 300
INSPECTION , CARE & USE
DO NOT side load clamp more than 15° for side loading
DO NOT lift plates with a temperature greater than 100ºC
DO NOT use to lift stainless steel, lead or copper.

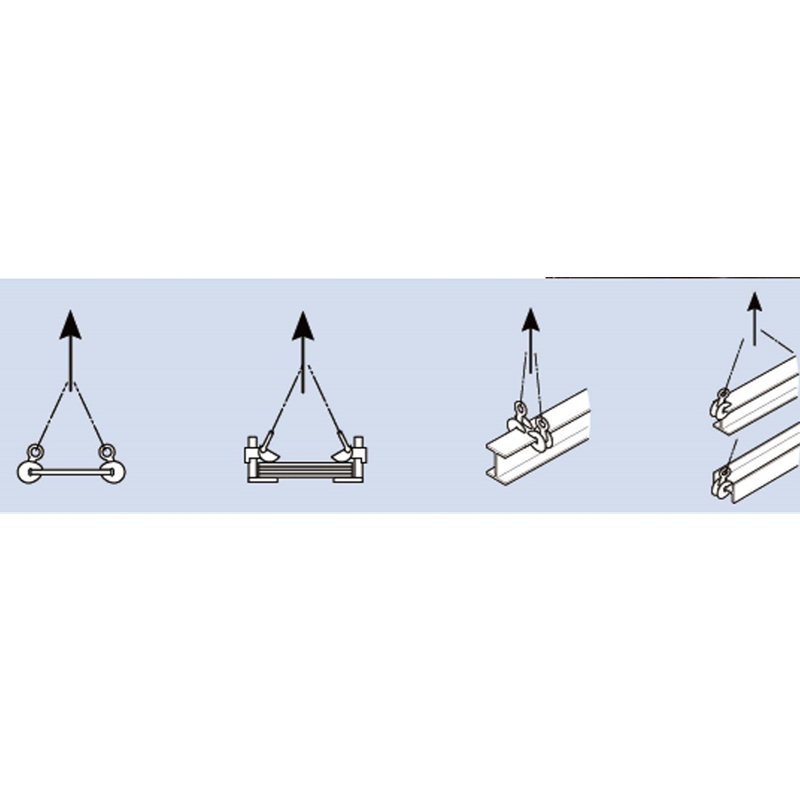

DO NOT use on a double, triple, or quad sling. When using two clamps to lift a steel plate, a lifting beam must be used between the two clamps, so the clamps operate in a vertical position.
