SCDH
SUPER FISHER/ OEM
| Quantity: | |
|---|---|

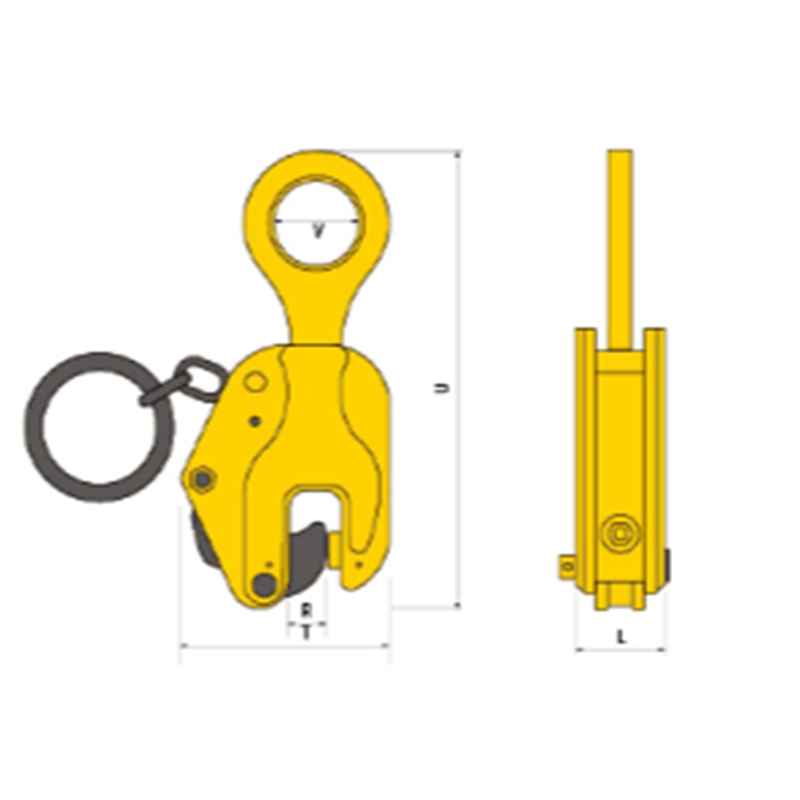

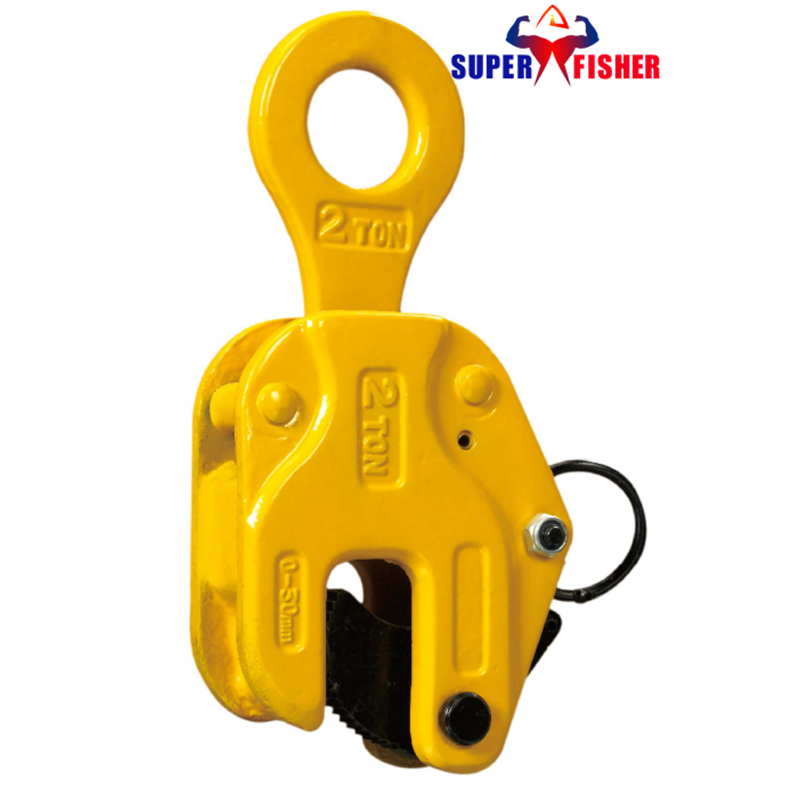

SCDH Standard plate clamp with safety lock

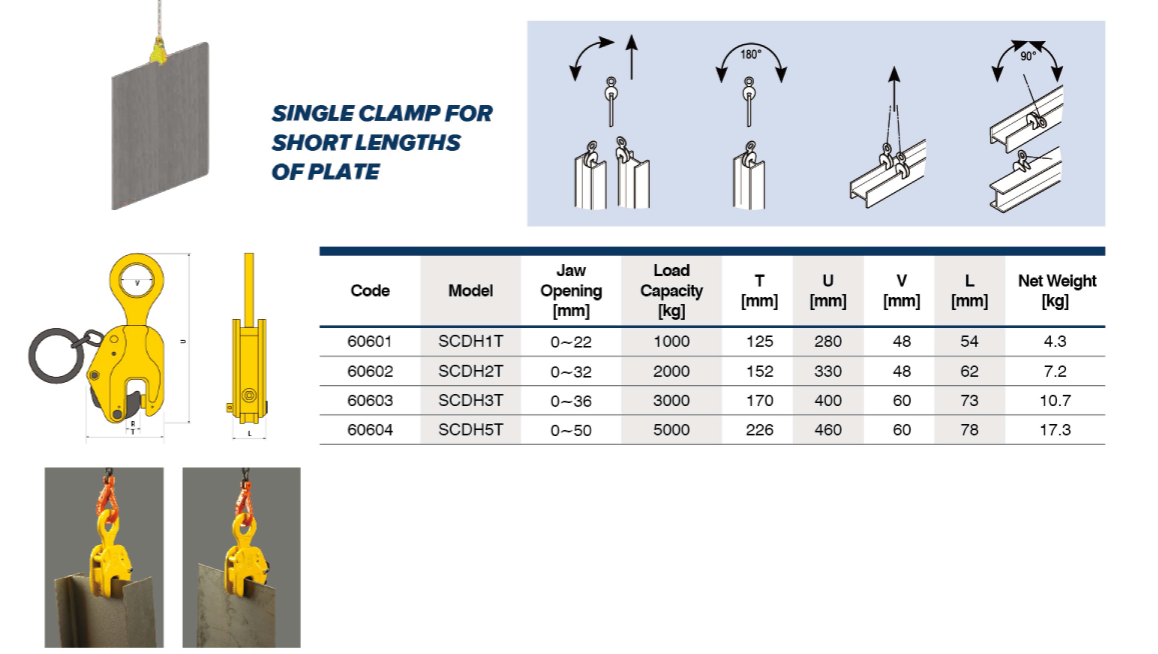

WORKING LOAD LIMIT (WLL) 1000-5000KGS

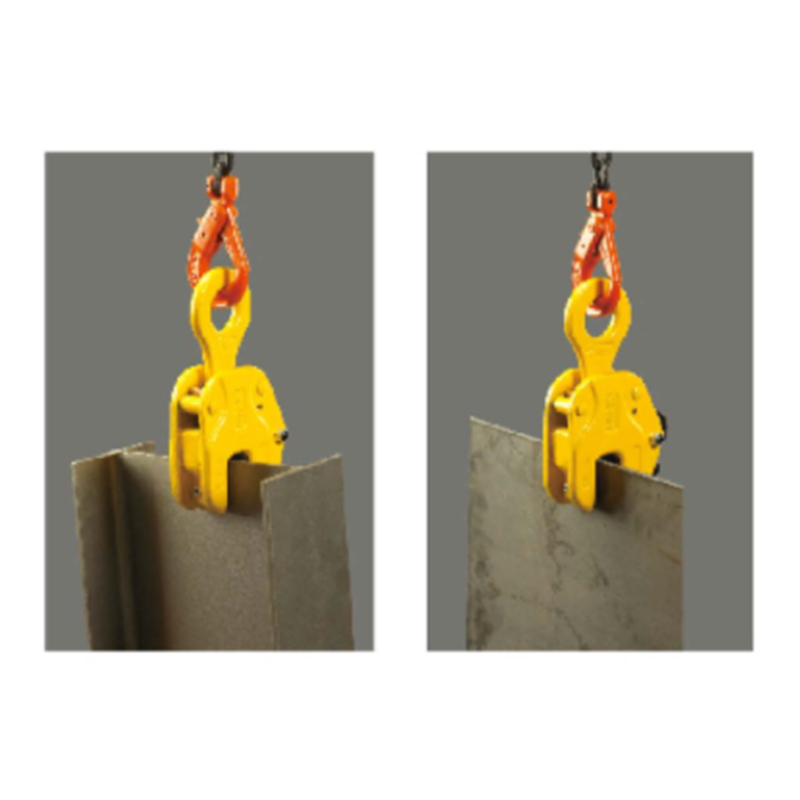

Standard design clamp for vertical lifting of steel plates and steel structures.
The spring-loaded tightening lock mechanism assures a positive initial clamping force.
Clamp are equipped with a safety mechanism,ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
The main body and the shackle are made of die-forged special alloy steel, which are optimally tempered for maximum strength and durability.
High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.
***NB:The plate surface of the material must have a hardness lever below HRC30/Brinell 300
>INSPECTION, CARE & USE

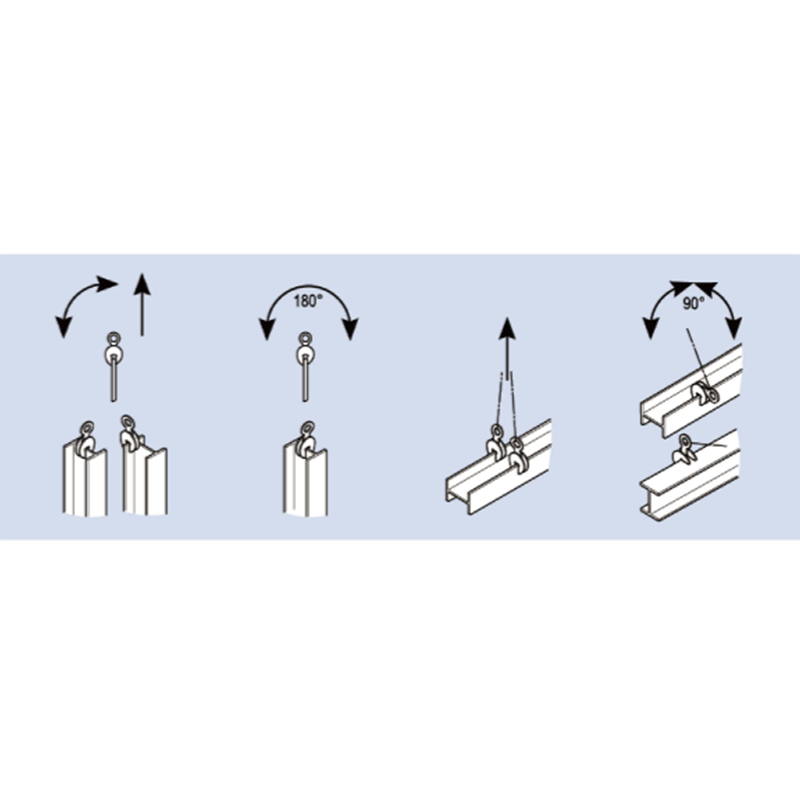

DO NOT side load clamp more than 15° for side loading
DO NOT lift plates with a temperature greater than100ºC
DO NOT use to lift stainless steel, lead or copper.
DO NOT use on a double, triple,or quad sling. When using two clamps to lift a steel plate, a lifting beam must be used between the two clamps so the clamps operate in a vertical position.
