STC
SUPER FISHER/ OEM
| Quantity: | |
|---|---|

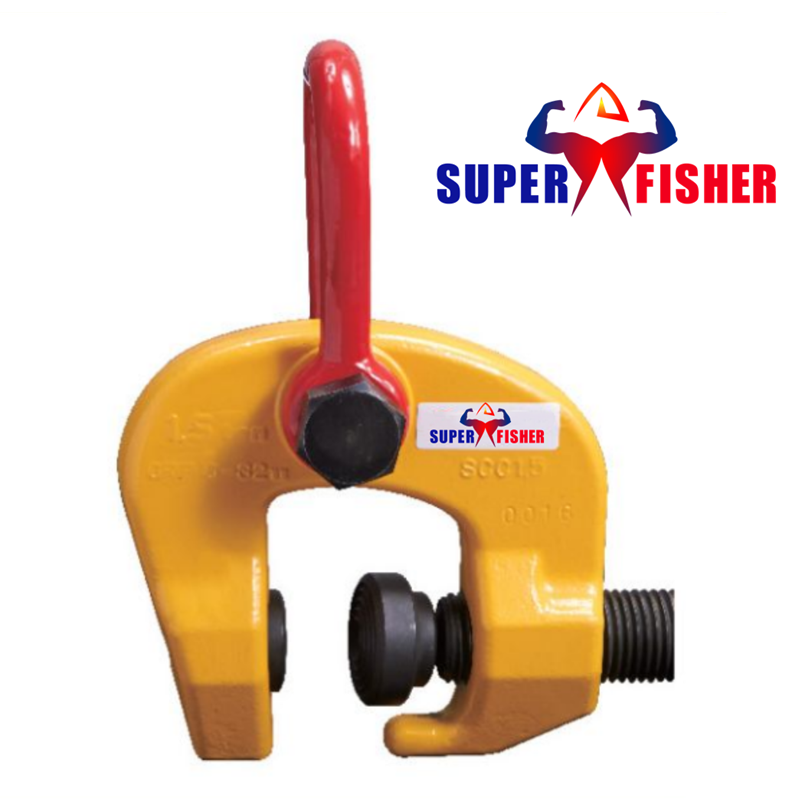

STC Screwcam clamp

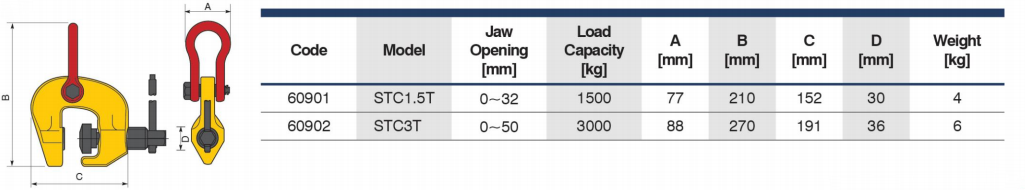

WORKING LOAD LIMIT(WLL)1500-3000KGS

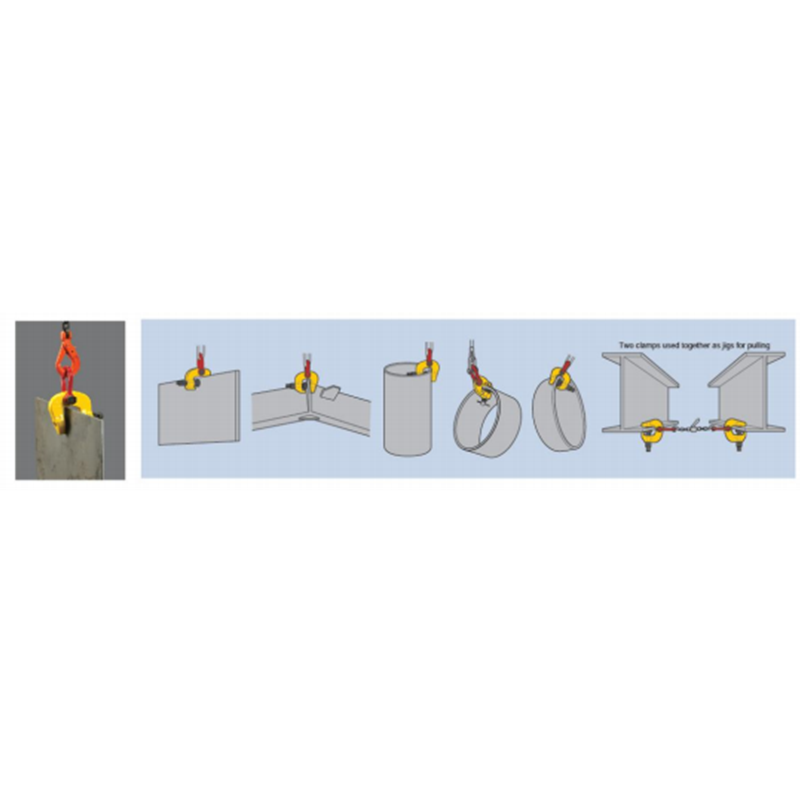

Suitable for lifting of a large variety of different shaped steel. Ranging from steel plates and structures steel to curved and spherical shaped steels.
They are designed to be used in conjunction with ratchet lever hoists to align steel structures of fabrications. They are ideally suited for the construction industry.
The STC screw clamp is fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workplace.
>INSPECTION, CARE & USE
DO NOT lift plates with a temperature greater than 100°C
DO NOT use with stainless steel, lead or copper
DO NOT over torque the threaded axle. This could cause damage to the pad
