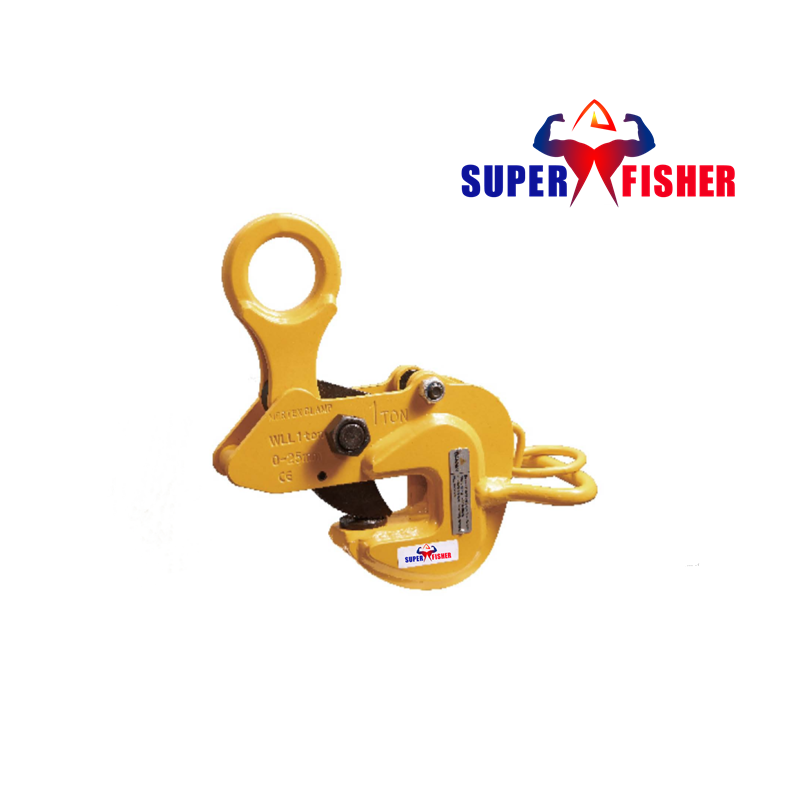

TMS Horizontal plate clamp with safety lock

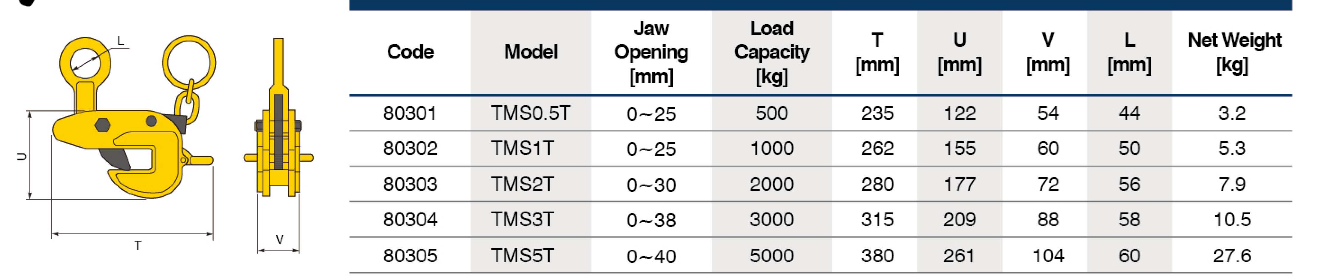

WORKING LOAD LIMIT (WLL) 500-5000KGS
TMS Horizontal lifting clamp for dimensionally stable sheets, sheet stacks and profiles.
With safety-latch system; can be locked closed.

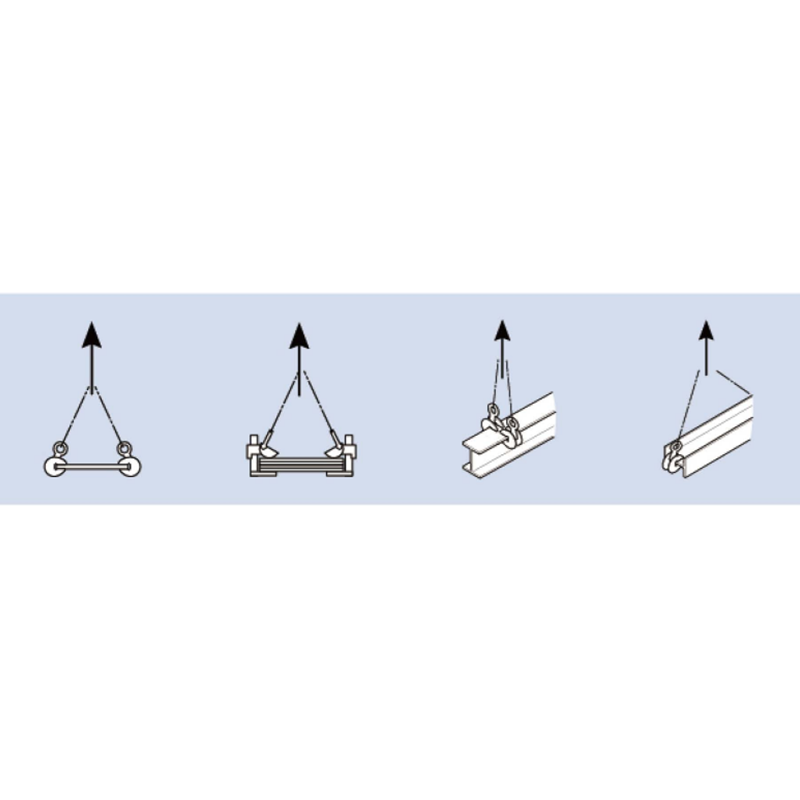

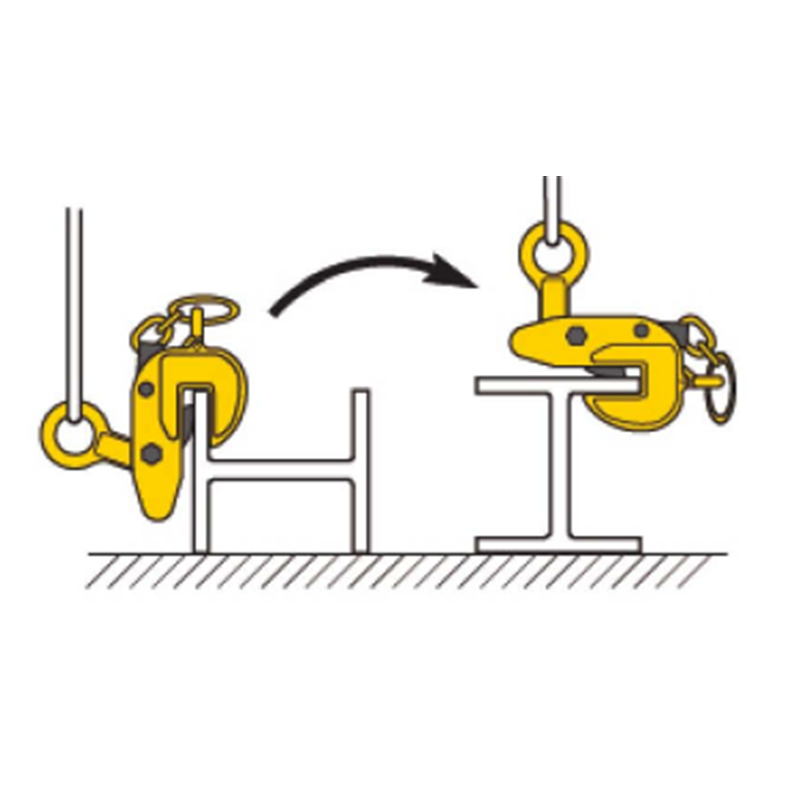

Used for handling girders in pairs, for handling sheets and bundles of sheets, slings with three clamps or more.
***NB: The plate surface of the material must have ahardness lever belowHRC30/Brinell 300
>INSPECTION, CARE & USE
DO NOT lift plates with a temperature greater than 100°C
