PLG
SUPER FISHER/ OEM
| Quantity: | |
|---|---|

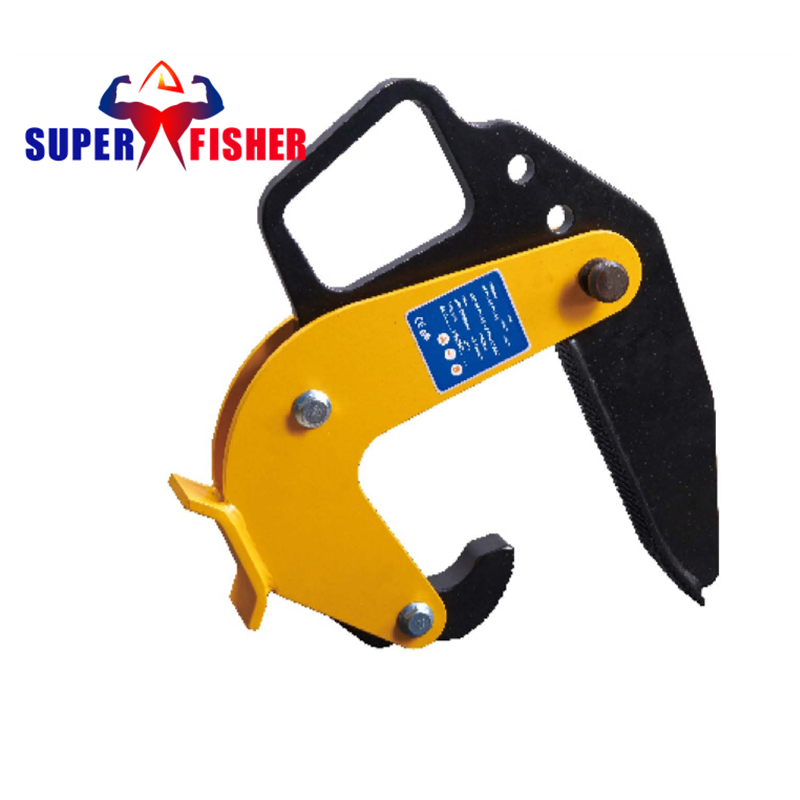

PLG concrete pipe lifting clamps
WORKING LOAD LIMIT(WLL)1500-3000KGS
The PLG concrete pipe lifting clamps are sold in sets of three and they come complete with chain slings( the working load limits shown are based on a set of three clamps).
They are designed for the vertical transportation of concrete pipe sections with a diameter of up to 2m.
The jaw capacity is designed for pipe thickness of 40-220mm.
Attachment and removal of the clamps from the pipes is extremely easy due to the simple and straightforward design.
FEATURES:
Solid construction
For heavy duty use
Light weight design
Simple and safe handling
For concrete
Factor of safety 4:1
Large jaw capacity
according to DlN4034
