SF-BJ01
SUPER FISHER / OEM
| Quantity: | |
|---|---|
Step 1: Tighten the valve clockwise to ensure that the oil return valve can not be turned as far as it will go. You will feel a firm mechanical stop, indicating the hydraulic system is sealed securely and ready for pressure accumulation.
Step 2: According to the height of the car body, select the height of screw out to minimize the pumping distance and maximize lifting efficiency.
Step 3: Insert the handle without groove into the end. The textured, cold steel grip ensures your hands will not slip during operation, transferring your mechanical force directly into the pump.
Step 4: Place the jack near the tire of the car chassis ,and pull the handle up and down to reach the desired height. The hydraulic fluid moves silently, providing a steady, unyielding upward thrust.
Step 5: After completion,loosen the valve one or two turns times anticlockwise,and press by gravity to retract the piston smoothly back into the cylinder.
Important Safety Notice: This jack does not have the function of automatic lowering.Remember that the oil return valve cannot be loosened too much,or the jack leaks oil.

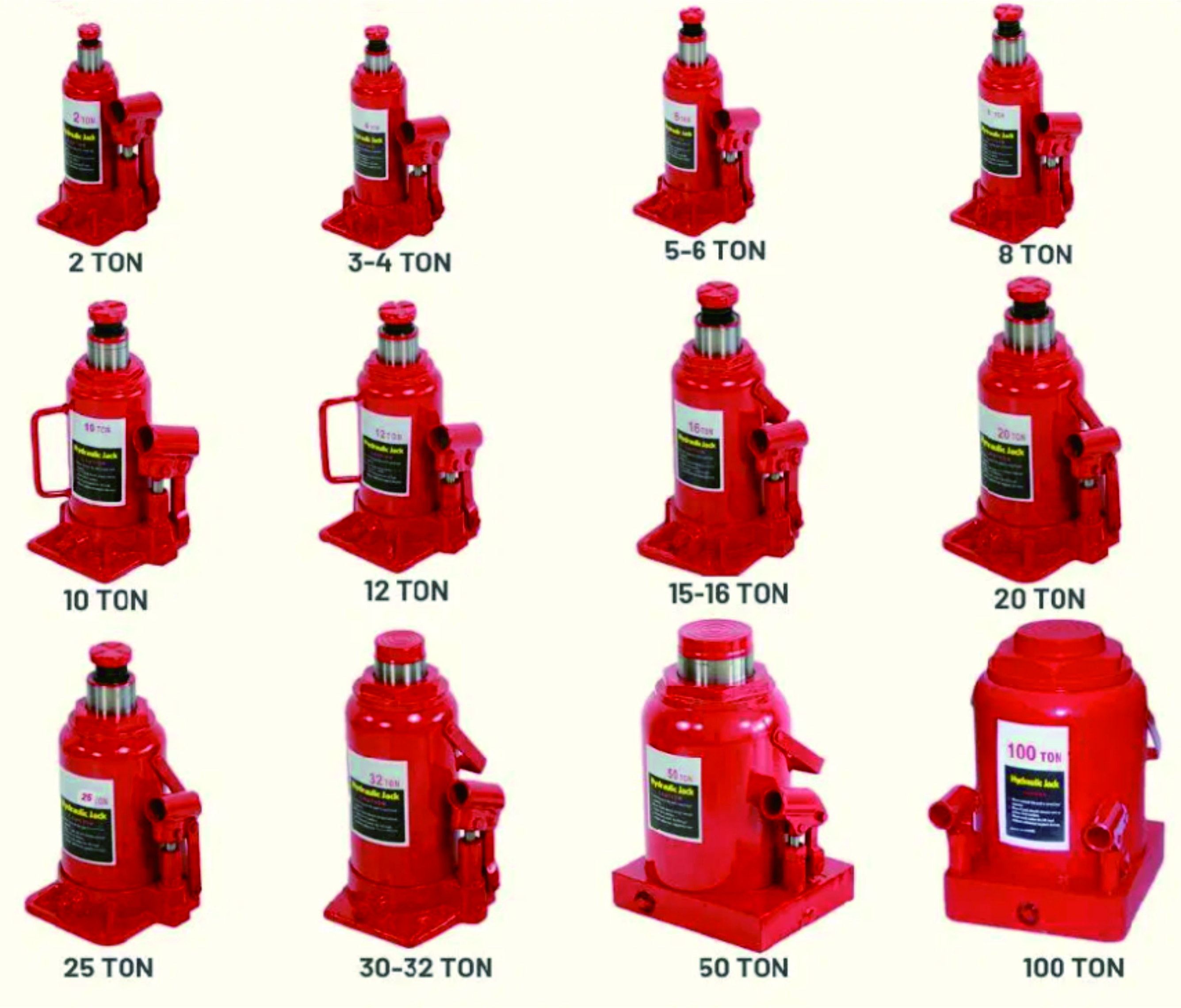

To further protect operators during high-pressure lifting, the SF-BJ01 features a built-in safety relief valve and an overload bypass system. If the applied load exceeds the rated capacity, the bypass activates automatically to prevent structural failure. Additionally, the precision-machined hydraulic cylinder utilizes industrial-grade polyurethane sealing rings, guaranteeing long-lasting, leak-proof performance even under high-frequency usage in dusty or damp environments.
3. Red is our regular color, there are in stock. we can delivery fast when your quantities and models are same as ours. you can consult our sales team for immediate dispatch schedules and logistics planning.
Beyond physical customization, we provide comprehensive warranty services and rapid-response technical support. Our global supply chain ensures that vulnerable components, such as replacement valves and polyurethane seals, are readily available to minimize equipment downtime and keep your operations running continuously.
While highly effective for automotive repair, the SF-BJ01 series is engineered for much broader industrial applications. The immense lifting capacity and leak-proof design make it an indispensable tool for construction engineering, heavy machinery maintenance, mining equipment servicing, and large-scale logistics operations. Whether lifting a commercial earthmover or supporting structural beams, the steady hydraulic pressure delivers reliable performance in the harshest environments.

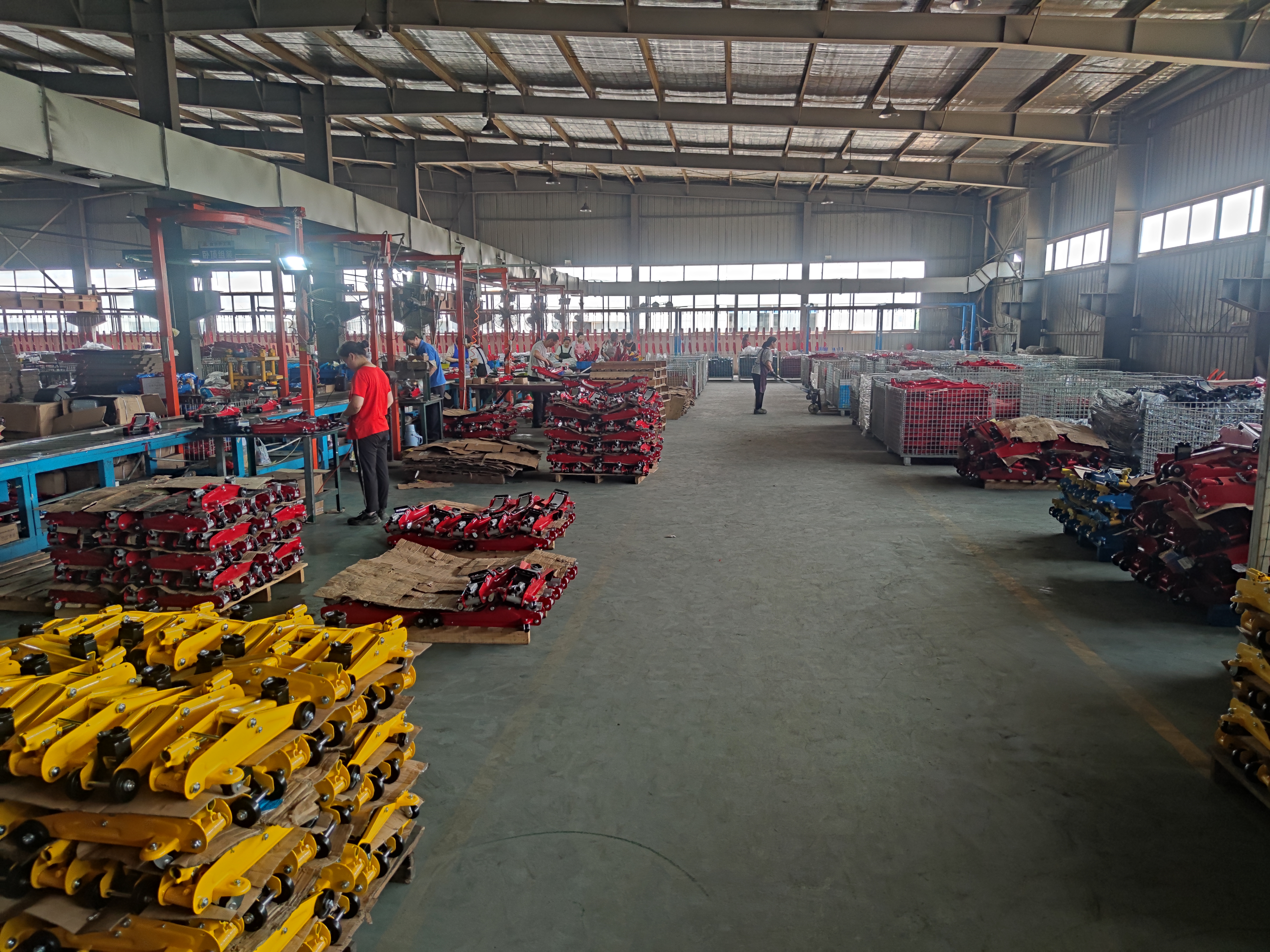

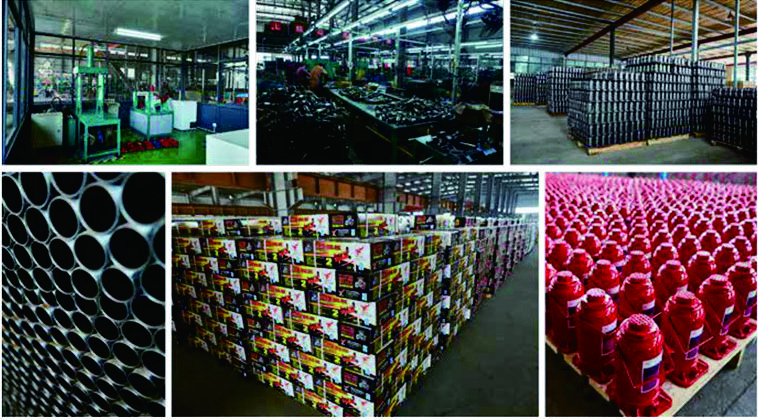

To guarantee this level of dependability, every single unit undergoes rigorous quality control before leaving the facility. We implement 100% static overload testing and dynamic pressure holding tests. This ensures that the structural integrity and hydraulic seals maintain their performance consistency, providing absolute peace of mind during extreme heavy-duty operations. The unmistakable scent of industrial machine oil and the solid metallic clink of the components during assembly are testaments to our unyielding manufacturing standards.
