MJ-1.5/ MJ-3/ MJ-5/ MJ-10/ MJ-16/ MJ-20/ MJ-25
SUPER FISHER / OEM
| Quantity: | |
|---|---|

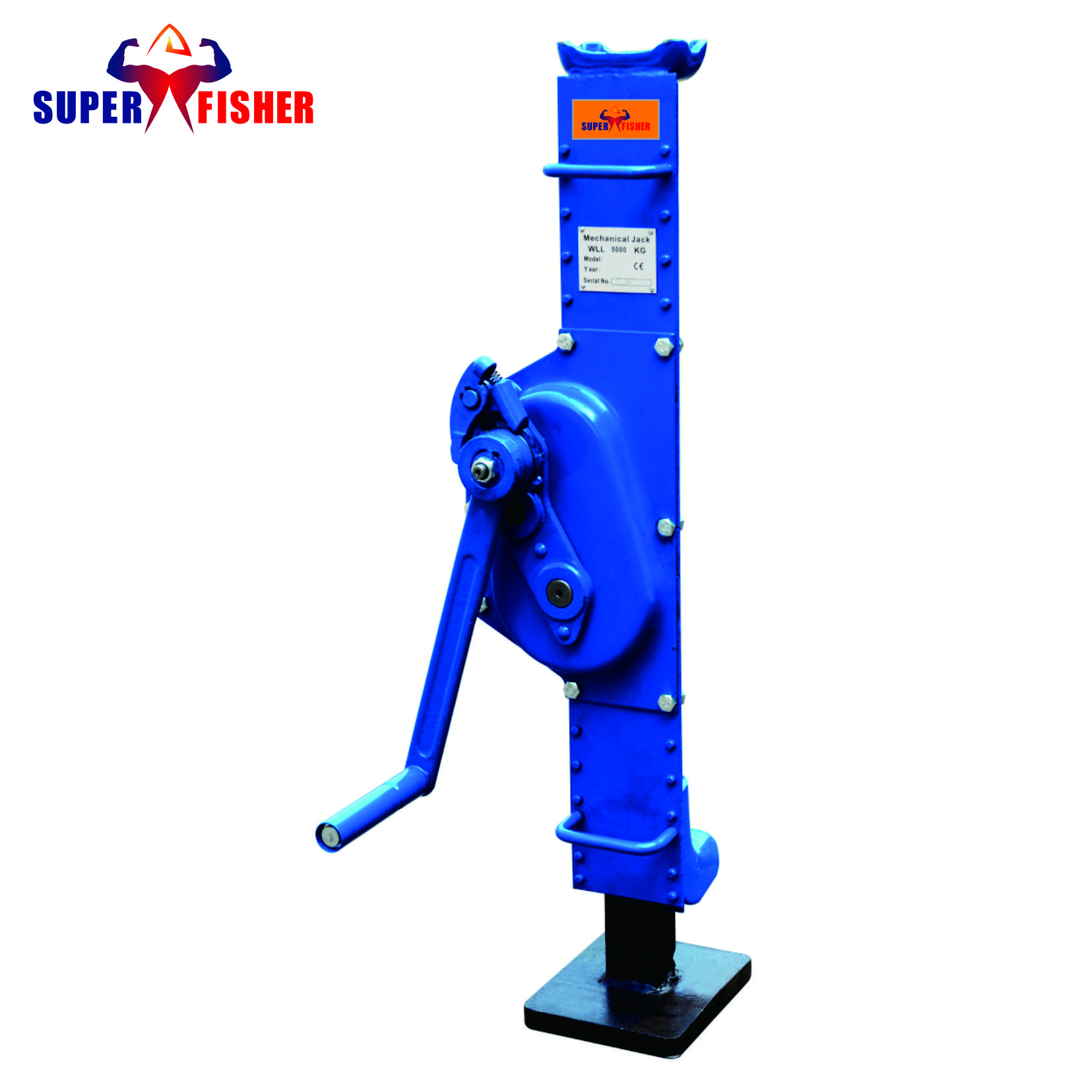

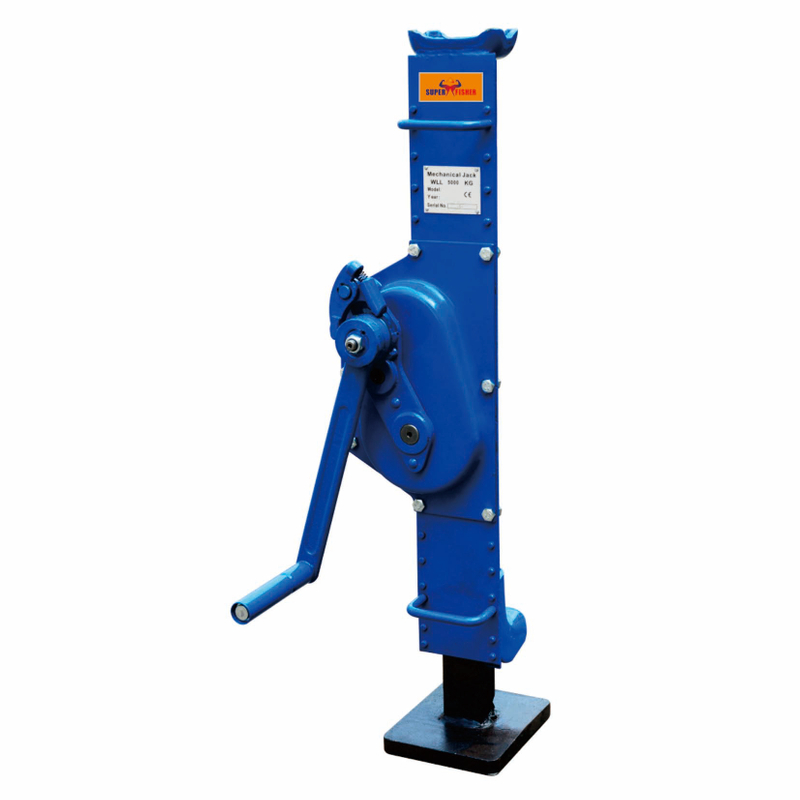

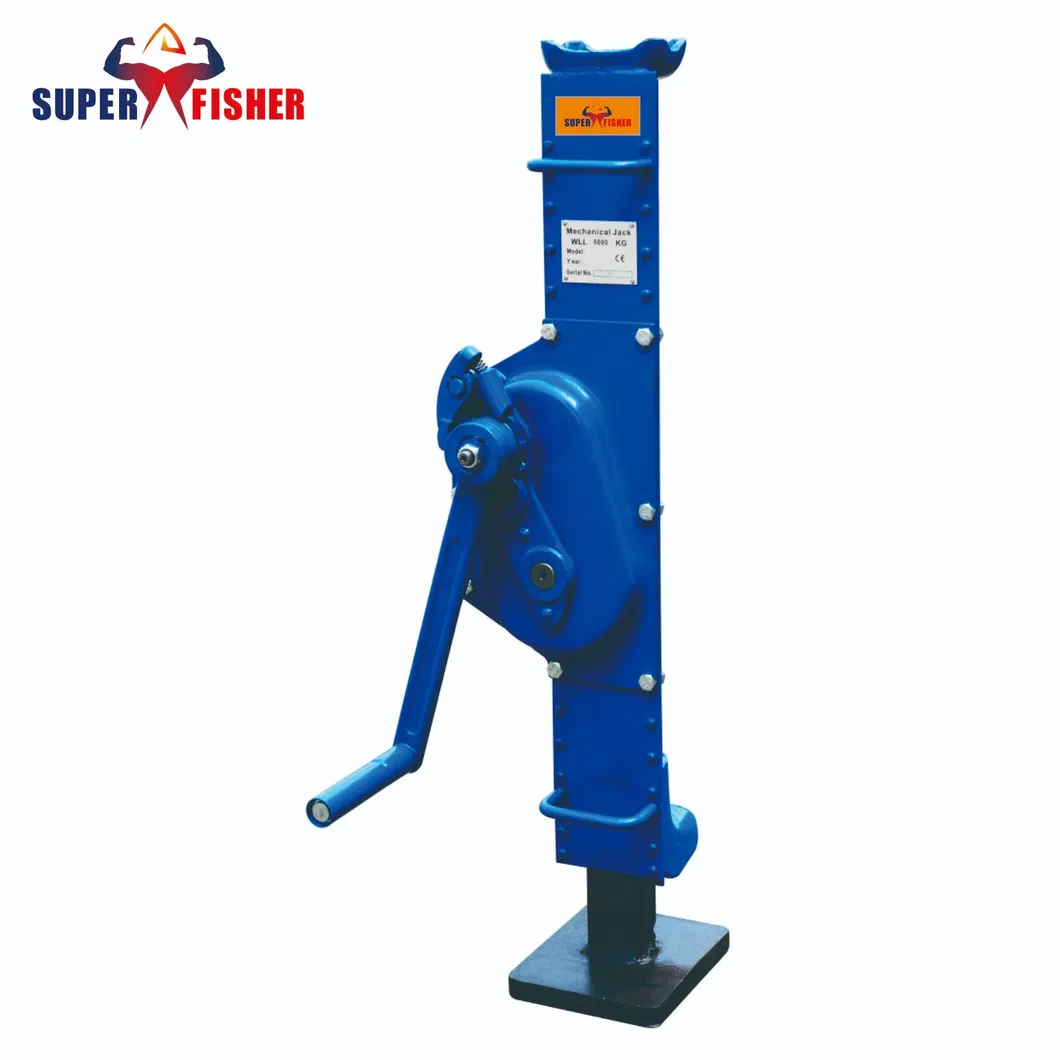

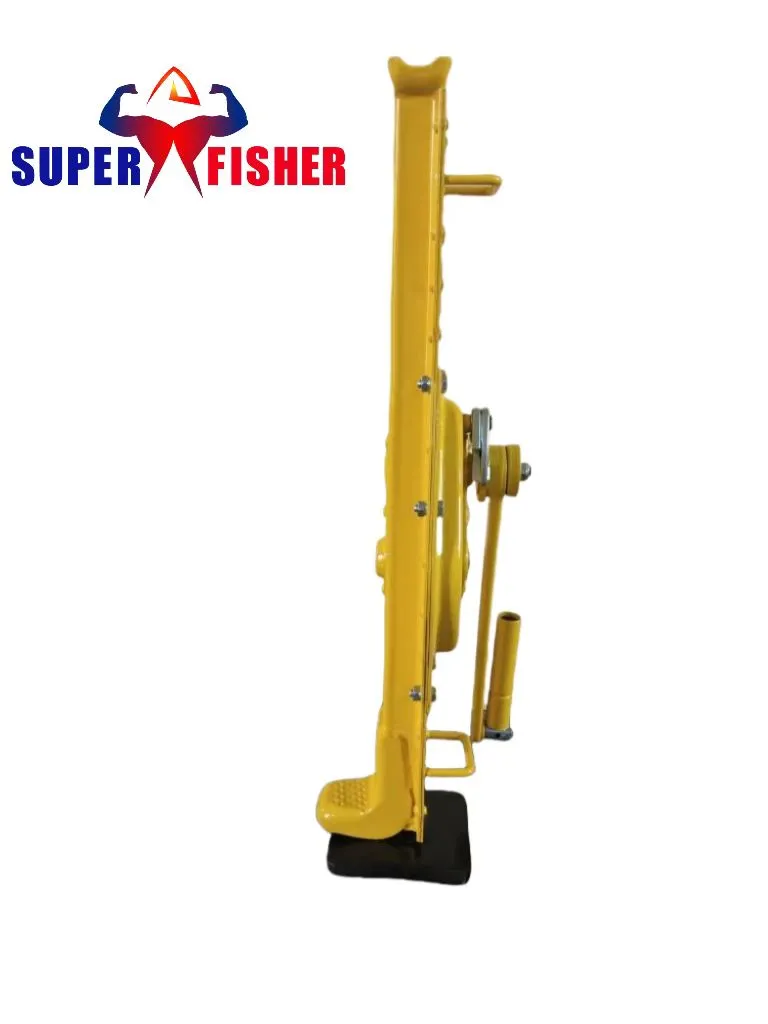

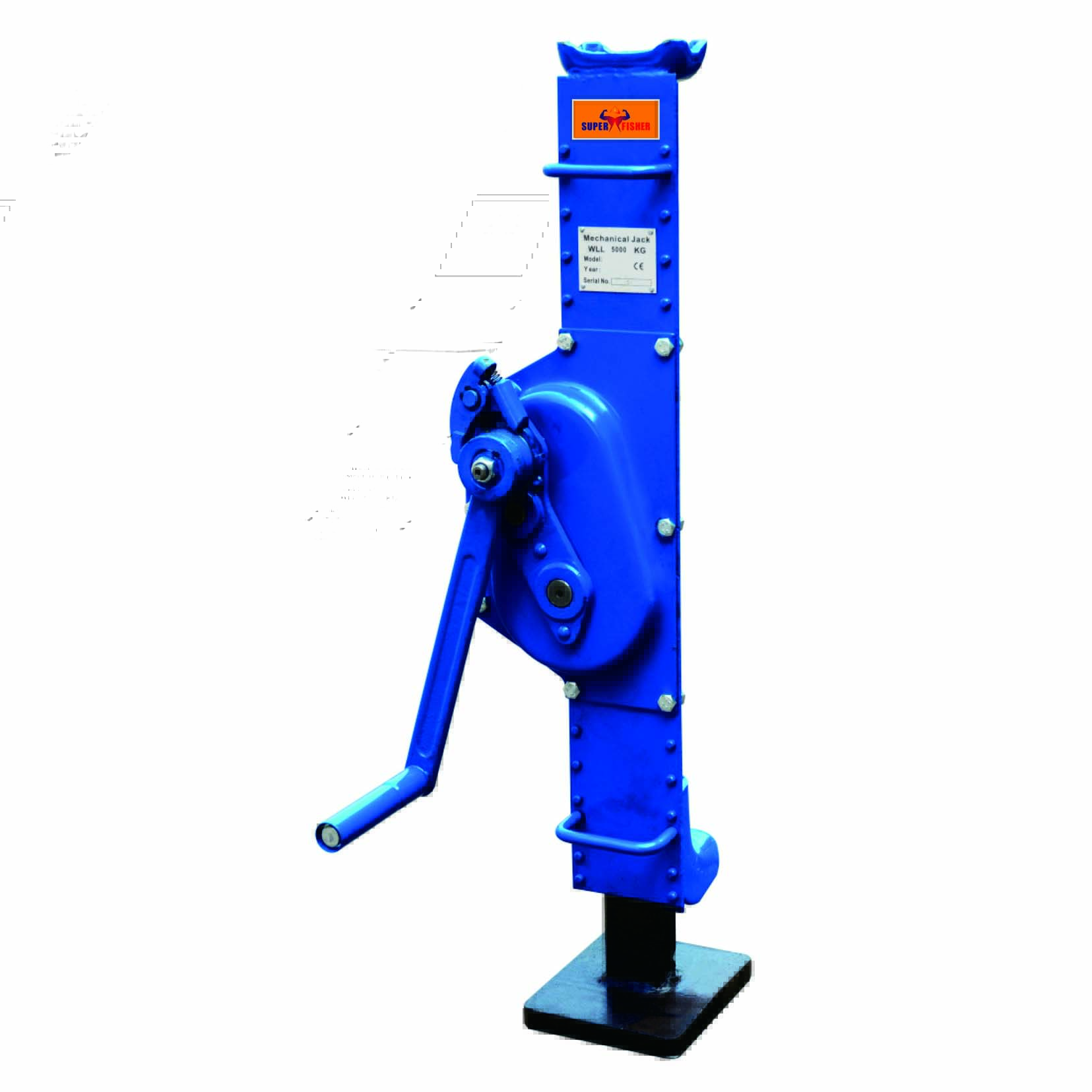

Mechanical Steel Jack With Folding Handle
WLL:1500 - 25000 KGS
>The mechanical steel jack is designed by mechanical transmission principle.
>lt's one of the best lift tools used in repairing and supporting, etc.
>The lifting or lowering speed is controllable.
>Moreover, it overcomes the shortcoming of the common hydraulic jacks whose lowering height and speed is out of control when oil leaking.
>The top-quality all steel structure makes it safe and durable.

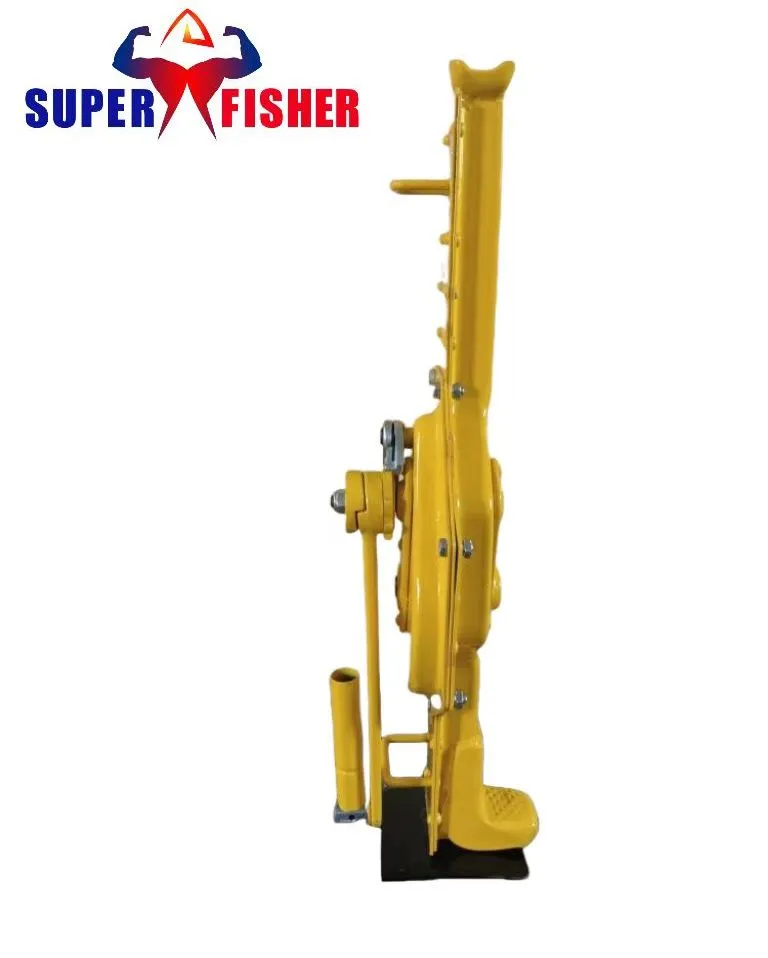

>The compact design with collapsible lever offers easy operation and simple maintenance.
>lt has two applicablesupports stands.The lifting range is much higher.
*All jacks are tested with 25% overload

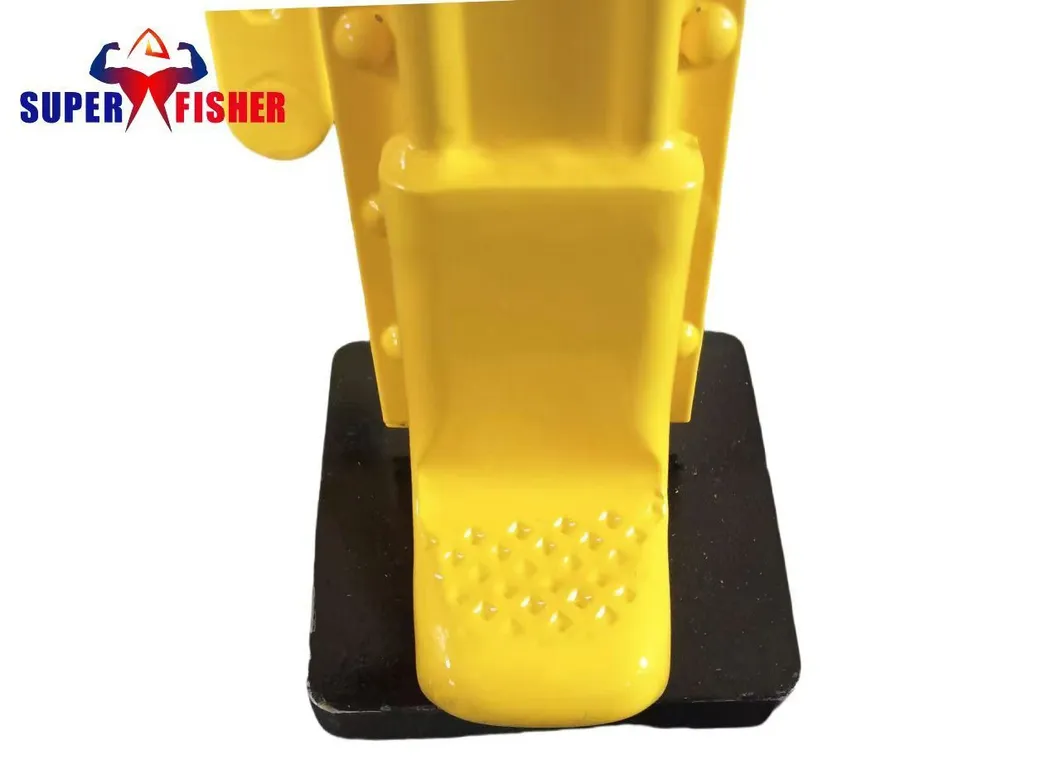

*Equipped with fixed claw

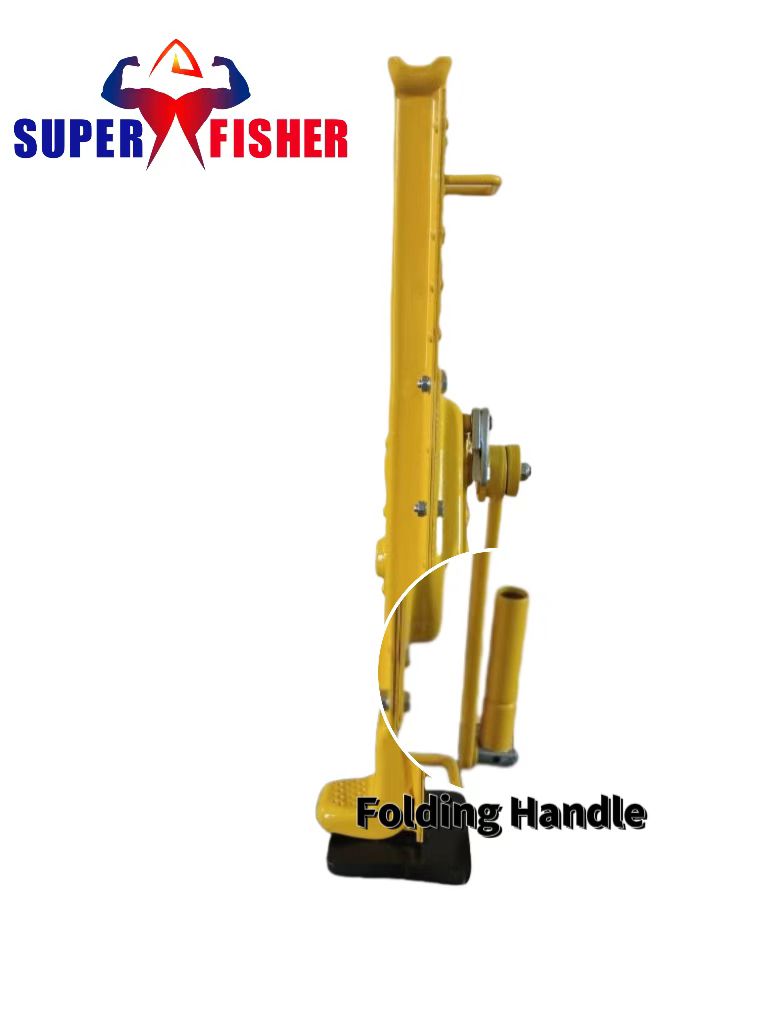

*Folding handle
| Rated Capacity / Ton | T | MJ-1.5 | MJ-3 | MJ-5 | MJ-10 | MJ-16 | MJ-20 | MJ-25 |
| Test Load / KN | KN | 18.4 | 36.8 | 61.3 | 122.5 | 196 | 245 | 306 |
| Hand shake to lift full load / N | N | 140 | 196 | 235 | 431 | 580 | 650 | 750 |
| Dimensions / MM | A | 77 | 83 | 105 | 120 | 153 | 153 | 153 |
| B | 100 | 130 | 140 | 140 | 150 | 150 | 198 | |
| C | 605-905 | 720-1075 | 735-1065 | 795-1155 | 790-1105 | 840-1155 | 950-1360 | |
| D | 55-355 | 55-410 | 60-390 | 70-430 | 90-405 | 90-405 | 110-520 | |
| E | 55 | 60 | 70 | 80 | 85 | 85 | 85 | |
| F | 40 | 45 | 68 | 73 | 90 | 90 | 90 | |
| G | 110 | 138 | 175 | 175 | 182 | 182 | 230 | |
| H | 225 | 285 | 285 | 330 | 360 | 360 | 360 | |
| K | 121 | 200 | 190 | 252 | 275 | 275 | 388 | |
| R | 119 | 140 | 155 | 185 | 210 | 224 | 200 | |
| S | 185 | 230 | 220 | 220 | 202 | 202 | 205 | |
| T | 126 | 126 | 126 | 250 | 250 | 250 | 250 | |
| Net weight / KG | kg | 10.7 | 21.3 | 27 | 47 | 64.5 | 72 | 93 |
