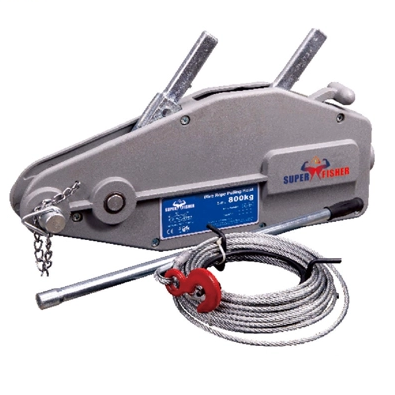

Wire Rope Pulling Hoist Model Y: Heavy-Duty Lifting Solution

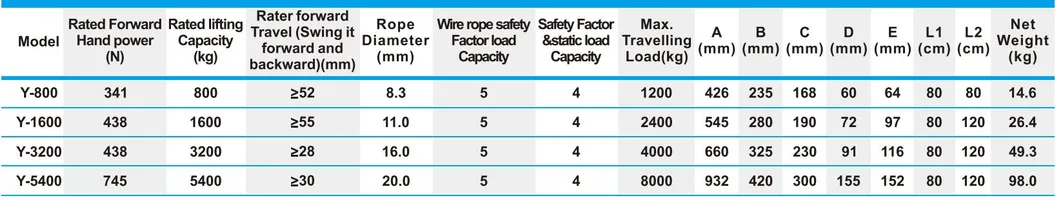

WLL: 800-5400KGS

When outfitting a professional fleet of lifting and rigging equipment, the Heavy Duty Manual Wire Rope Puller Model Y stands out as a foundational mechanical tool. Engineered for the most demanding industrial environments, this manual hoist offers a verified Working Load Limit (WLL) spanning precisely from 800 to 5400KGS. Constructed with a light weight, compact, yet exceptionally rigid high-strength aluminum alloy housing, the device delivers an optimal strength-to-weight ratio that operators can immediately feel when handling the unit on-site.

The precision-forged internal components are heavily protected against corrosion, moisture, and abrasive dust, ensuring consistent mechanical performance even in harsh, unpredictable outdoor conditions. A distinctively large, flat bottom surface anchors the unit firmly to the ground or structural mounts, granting operators increased stability in horizontal as well as vertical working positions. Every single unit undergoes rigorous static and dynamic overload testing before leaving the manufacturing facility. This exhaustive quality control process guarantees that large-scale orders consistently meet strict CE and ISO international safety standards. The tactile feel of the smooth, industrial-grade finish reflects the meticulous craftsmanship dedicated to its assembly, providing buyers with a reliable mechanical advantage that minimizes operational risks.

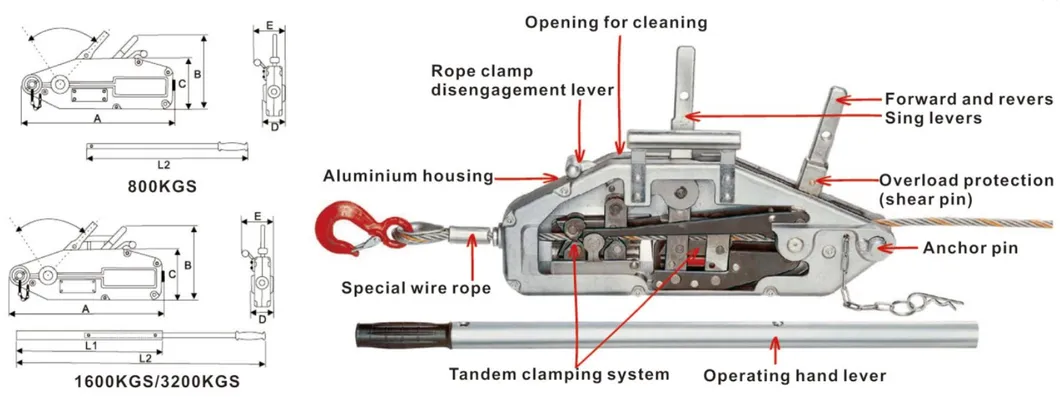

Core Features & Mechanical Engineering

• Tandem Lever Design for Optimal Power: The forward and reversing levers operate in tandem, providing a remarkably slim, ergonomic profile. This precise alignment assures direct power transfer along the true center line of the cable, minimizing operator fatigue during prolonged tensioning tasks. The satisfying mechanical engagement of the levers confirms positive action with every stroke.
• Advanced Overload Protection System: Operational safety is strictly maintained through a precisely engineered shearing pin located directly in the forward lever. Spare shear pins are conveniently located in the carrying handle or the operating lever itself for immediate visual access. In the event of extreme mechanical stress or accidental overloading, a broken pin can be replaced without removing the load. This crucial feature maintains strict safety compliance while minimizing costly site downtime.
• Frictionless Rope Installation: A dedicated release lever completely disengages the internal rope clamp system. This mechanism allows for the easy, smooth installation of the wire rope. Operators can thread the specialized galvanized cable through the housing in seconds, preparing the pulling hoist for immediate action without requiring specialized hand tools.
• Parallel Clamping Mechanism: The parallel arrangement of the clamping system protects the wire rope by distributing the immense clamping forces evenly across a larger surface area. This intelligent design significantly reduces abrasive wear on the individual steel strands, extending the lifespan of the consumables. Furthermore, a long rope advance per each lever stroke exponentially increases the working speed, allowing teams to complete heavy pulls faster.
• Simplified Maintenance and Debris Clearance: Industrial environments are inherently dirty, but the large opening in the top of the unit allows easy cleaning. Operators can simply flush the unit with water to remove mud, grit, or debris. After drying, simply apply motor oil for lubrication and the puller is again ready for use. This straightforward maintenance protocol drastically reduces ongoing upkeep costs and extends the operational life of the equipment.

Industrial Applications & Deployment Scenarios

The inherent versatility and rugged construction of the Model Y wire rope puller make it an indispensable asset across multiple heavy-duty sectors. Its unique ability to function reliably in vertical, horizontal, and angled positions allows procurement managers to consolidate their equipment inventories with a single, multi-functional tensioning tool.

Construction and Structural Engineering

On active building sites, this manual hoist is frequently utilized for tensioning massive structural steel frameworks, precisely positioning heavy concrete forms before pouring, and securely anchoring complex scaffolding systems. The precise control offered by the lever system allows for millimeter-accurate adjustments, ensuring structural elements are aligned perfectly before permanent fixing.

Forestry and Agricultural Management

In off-grid environments where motorized winches cannot reach, this portable puller excels. It is highly effective for uprooting stubborn tree stumps, clearing heavy fallen timber, and tensioning large-scale perimeter fencing across uneven terrain. The sealed aluminum housing resists the damp, earthy conditions of dense forests, while the mechanical advantage easily overcomes heavy organic resistance.

Power Grid and Telecommunications

Utility crews rely heavily on the consistent pulling force of this device for dragging heavy underground cables through tight, subterranean conduits. It is equally valuable for tensioning overhead transmission lines, where the reliable parallel clamping system ensures the cables remain securely held without surface damage during the delicate splicing process.

Mining Operations and Emergency Rescue

The spark-resistant nature of the aluminum alloy housing, combined with its exceptional portability, makes it highly effective for equipment recovery in confined, hazardous mine shafts. Furthermore, first responders utilize the hoist for rapid vehicle extraction and structural stabilization during emergency rescue scenarios, where absolute reliability and immediate load-bearing capabilities are critical.
