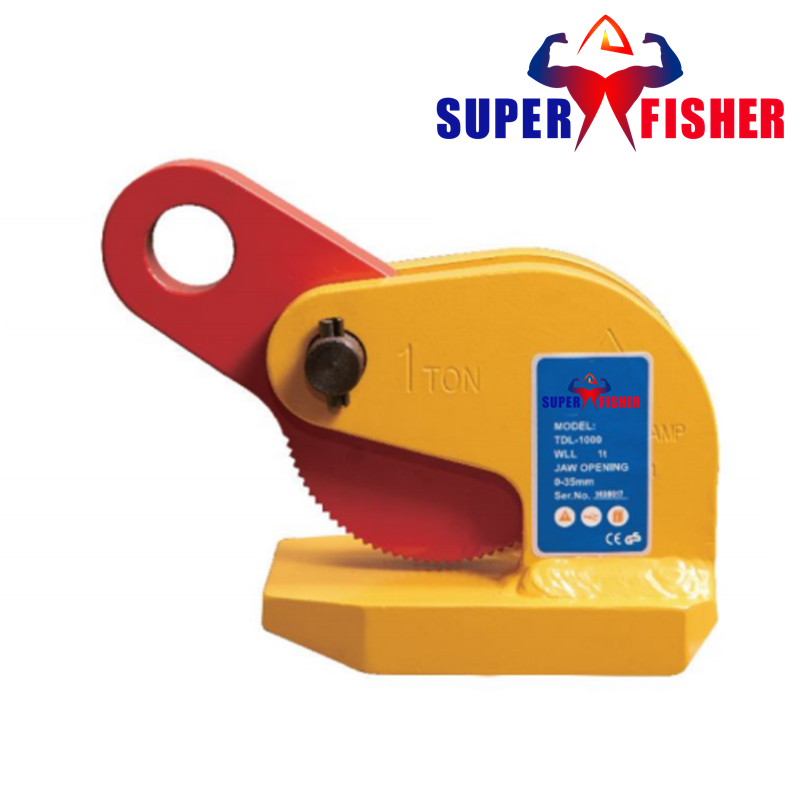

TDL Thin sheet horizontal plate clamp

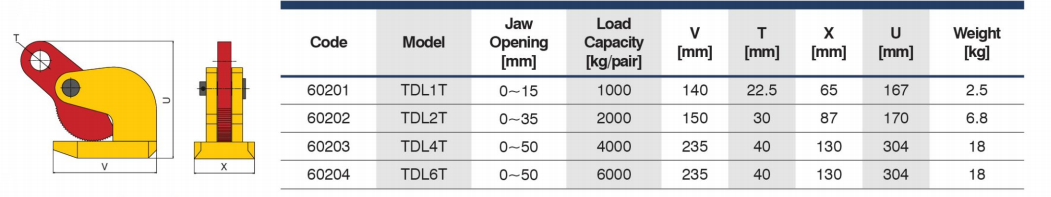

WORKING LOAD LIMIT (WLL)1000-6000KGS

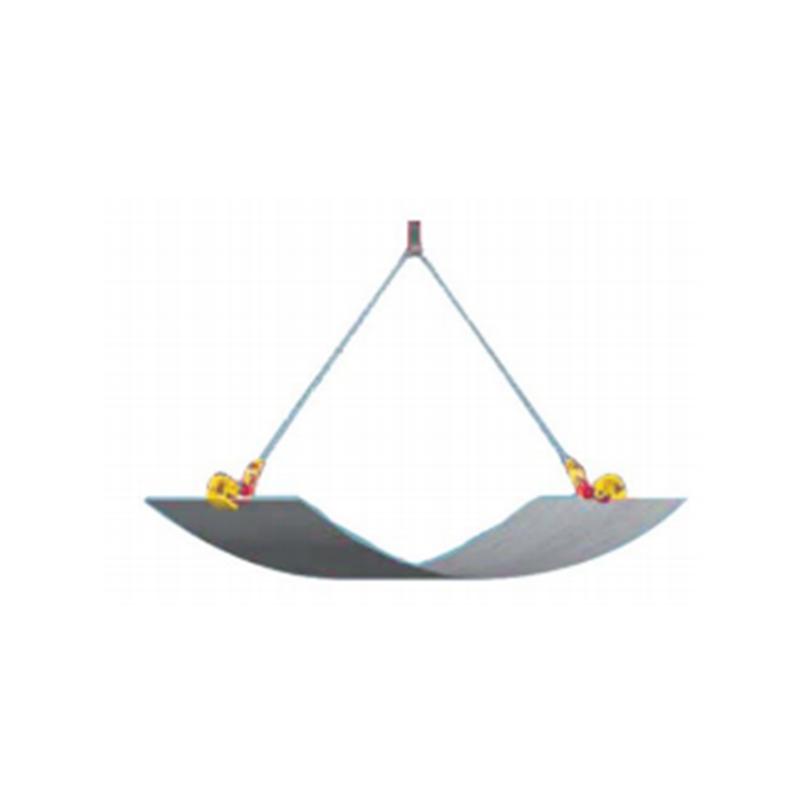

The TDL horizontal plate clamps share the same basic design features as theTCH range of clamps but have a reversed jaw design, This acts as an additional safety feature specifically
for use with thin sheets which may have a tendency to deflect or sag or flex.
The TDL clamps are particularly suited to thin plate with a surface hardness less than 300 HRC32 Rockwell C.
>INSPECTION, CARE & USE

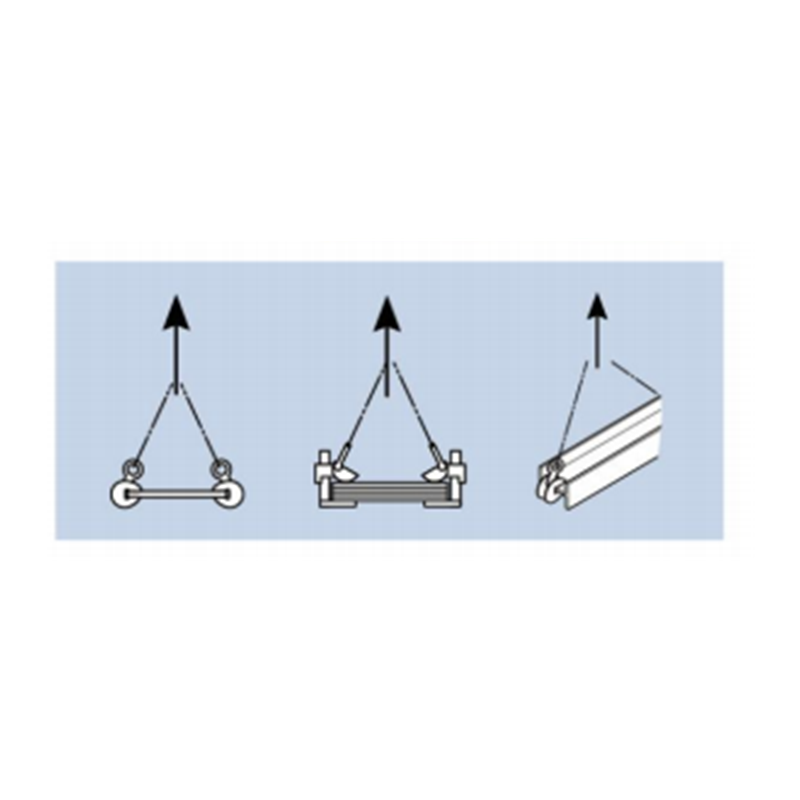

DO NOT use TDL clamps with 3 or 4 leg slings.
Use a spreader beam
