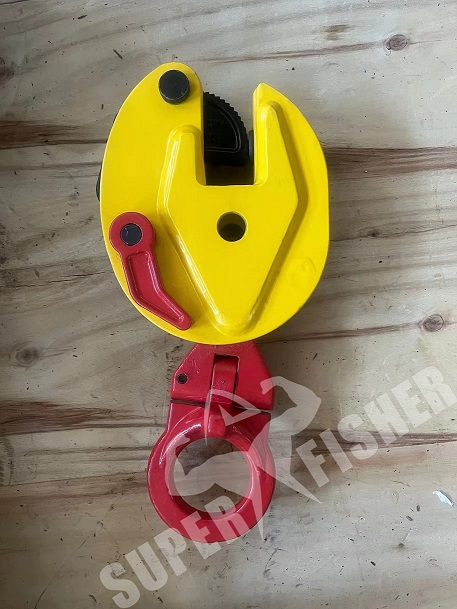

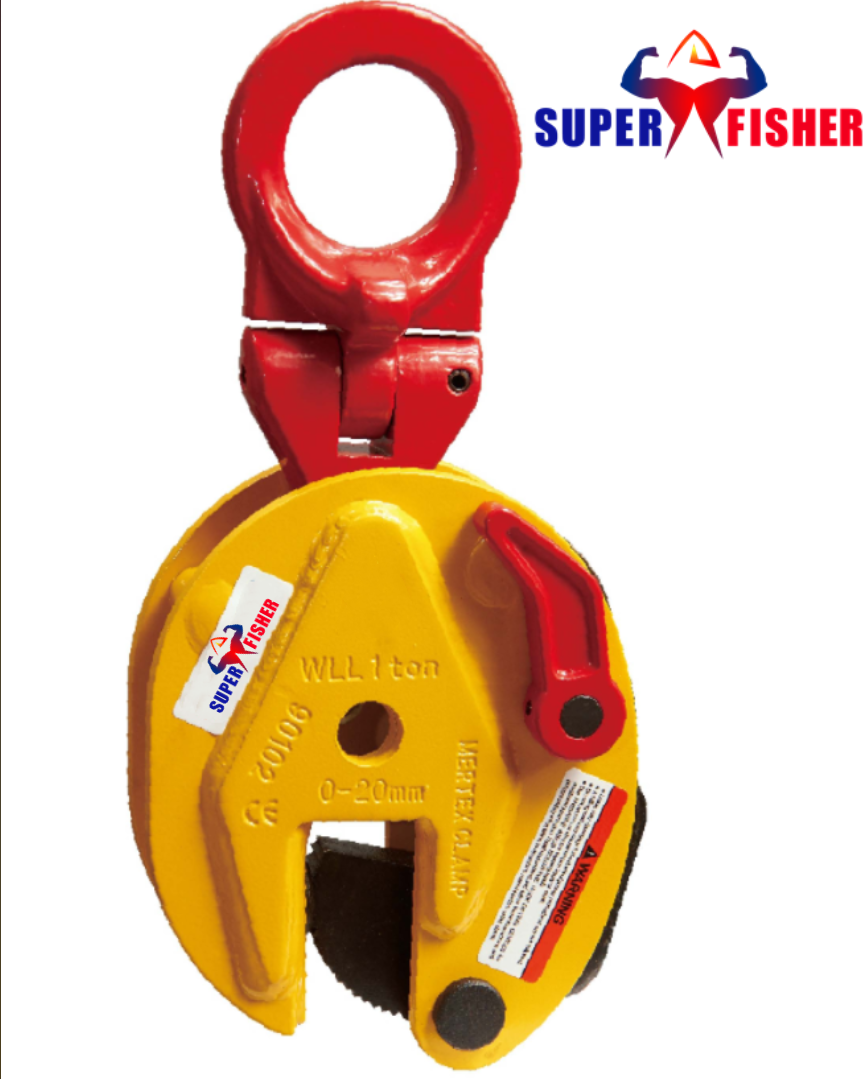

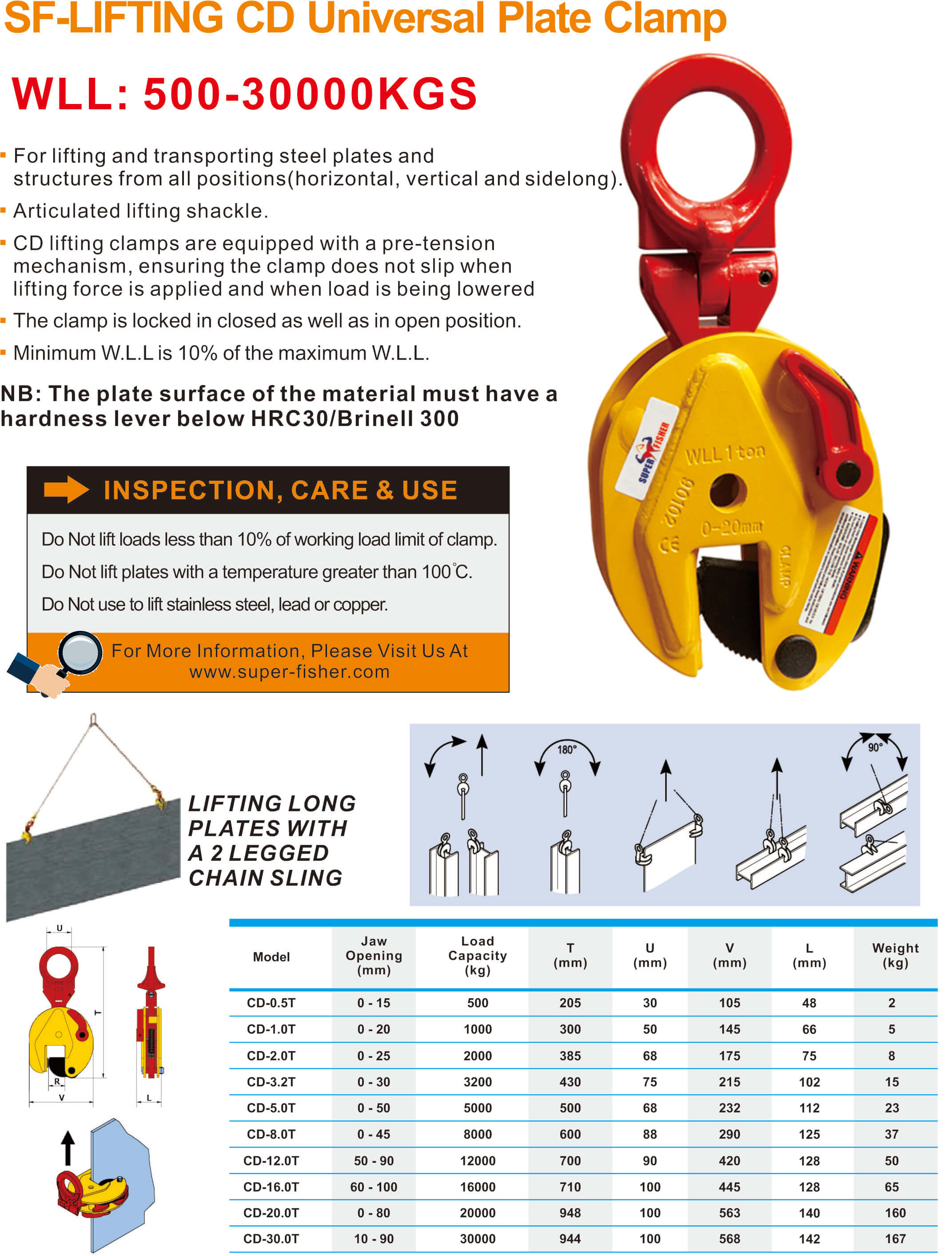

CD type Universal Plate Clamp Use For Lifting Equipment
WLL: 500 - 30000 KGS >For lifting and transporting steel plates and structures from all position (horizontal, vertical and sidelong).
>Articulated lifting shackle.
>CD lifting clamps are equipped with a pre-tension mechanism,
ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
>The clamp is locked in closed as well as in open position.
>Minimum W.L.L is 10% of the maximum W.L.L.
NB:The plate surface of the material must have a hardness lever below HRC30/Brinell 300
INSPECTION, CARE&USE
Do not lift loads less than 10% of working load limit of clamp.
Do not lift plates with a temperature greater than 100ºC.
Do not use to lift stainess steel, lead or copper.
