Product Description

When securing cargo for international transit, relying on certified, traceable equipment is non-negotiable. This Ratchet Tie Down made of 100% polyester webbings, coming with ratchet and hooks. Running your hands along the strap reveals a densely woven, firm texture specifically engineered to resist severe abrasion and UV degradation during long, exposed hauls. The advanced polyester (PES) fibers maintain a strict elongation rate of less than 7% under full load, ensuring that your cargo remains tightly anchored without loosening over bumpy, vibrating terrain.

Manufactured according to EN12195-2
With TUV/GS certificate. Every strap is equipped with a traceable blue label detailing the Lashing Capacity (LC), Standard Tension Force (STF), and manufacturing date, providing transport operators with absolute certainty regarding compliance with European road transport safety regulations.

*The width of ratchet tie down is ranging from 1" (25MM)to 4"(100MM).
*Capacity is ranging from 400kg to 10000kg.
*Variety of colors can be customized by requirements.
*The snap hooks have spring loaded latches for extra security and the webbing at the connection between the hook and the towing belt is thickened to make it safer.

Specification

Selecting the correct lashing capacity is critical for load distribution and transport stability. The table below outlines our standard 50mm width models, providing a clear overview of the breaking strength (B.S.) across different configurations. Each model, from the SF-RTD-5001 to the SF-RTD-5004, is rigorously tested for tensile strength and destructive limits to eliminate the risk of snapping under extreme environmental stress. The 100% polyester webbing maintains its structural integrity, delivering a reliable Minimum Breaking Strength (Min.B.S.) that aligns strictly with EN12195-2 protocols. Operators can match the specific Lashing Capacity (ranging from 1000daN to 2500daN) to their exact payload requirements, ensuring optimal tension without damaging the cargo.

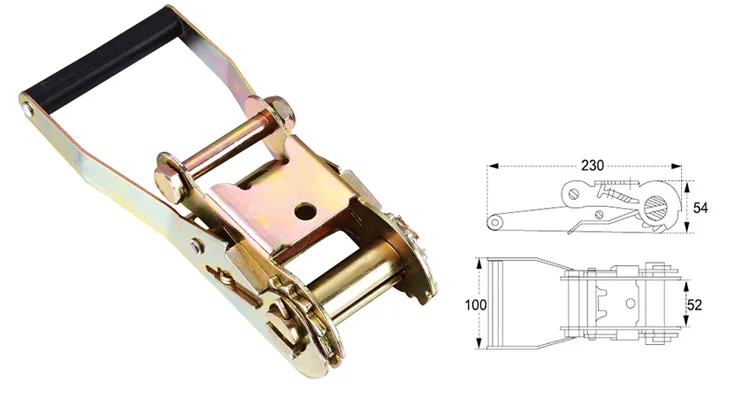

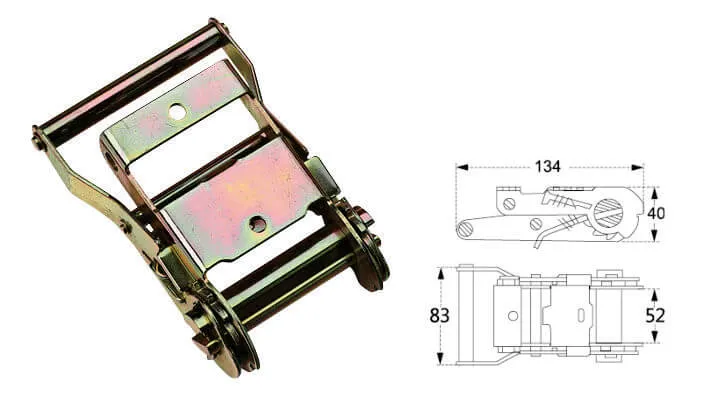

Ratchet Choice

The tensioning mechanism is the heart of any lashing system. Our selection of ratchets features heavy-duty steel construction with an anti-corrosive zinc-plated finish, offering a smooth, metallic tactile feel and exceptional resistance to rust in wet or snowy conditions. When engaging the mechanism, operators will notice the crisp, audible mechanical click of the gear teeth locking firmly into place, confirming positive engagement.

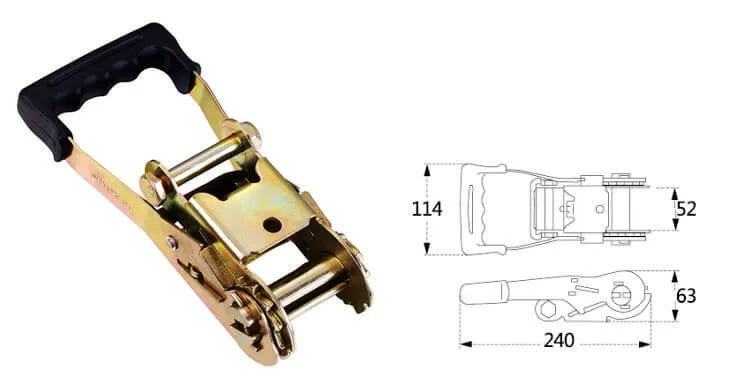

To accommodate different operational needs, we offer various handle designs. For extensive daily use, the optional Ergo (ergonomic) long handle provides superior leverage. This extended grip allows operators to achieve a higher Standard Tension Force (STF) with significantly less physical effort, actively reducing back and shoulder fatigue during repetitive tie-down tasks. The release triggers are engineered for a smooth, controlled unwinding process, preventing sudden recoil when unloading.

Hook Choice

Anchoring the webbing securely to the vehicle chassis or internal tie-down points requires precise hardware compatibility. We provide an extensive array of terminal fittings, including double J hooks, swan hooks, and flat S hooks, designed to interface perfectly with standard trailer anchor tracks. Safety is engineered into every connection point. The snap hooks feature spring-loaded latches that snap shut with a firm metallic clink, preventing the hook from bouncing out of its anchor point when the trailer navigates uneven, vibrating road surfaces. Furthermore, the critical junction where the polyester webbing meets the steel hook utilizes a thickened, multi-layer stitching pattern. This reinforced sewing distributes the mechanical load evenly across the threads, drastically lowering the risk of tear-out during sudden braking or evasive maneuvers.

Method of application

Proper deployment is just as vital as the equipment itself. These straps are engineered for both frictional lashing (tying down over the top of the cargo to increase friction against the load bed) and direct lashing (securing the load directly to specific anchor points). Before each journey, operators should conduct a visual and tactile inspection of the webbing. Run a gloved hand along the edges to check for severe cuts, yarn abrasions, or chemical burns. According to EN12195-2 standards, any strap showing tears exceeding 10% of the width, or exhibiting deformed metal ratchets, must be retired immediately.

Operational Best Practices

When applying tension, ensure the webbing is not twisted, as a flat strap distributes the restraining force evenly across the cargo surface. Use edge protectors for sharp loads to prevent localized severing of the polyester fibers. By following these professional lashing guidelines, transport teams can maximize road safety, maintain regulatory compliance, and significantly extend the operational lifespan of the tie-down equipment.

For flatbed trailers, curtain-siders, and internal van logistics, the 50mm width offers an ideal balance of surface area and tensioning power. Whether you are securing palletized goods, heavy industrial machinery, or loose construction materials, these certified straps adapt to the specific geometry of your payload, ensuring total stability from departure to destination.

Label & Packing

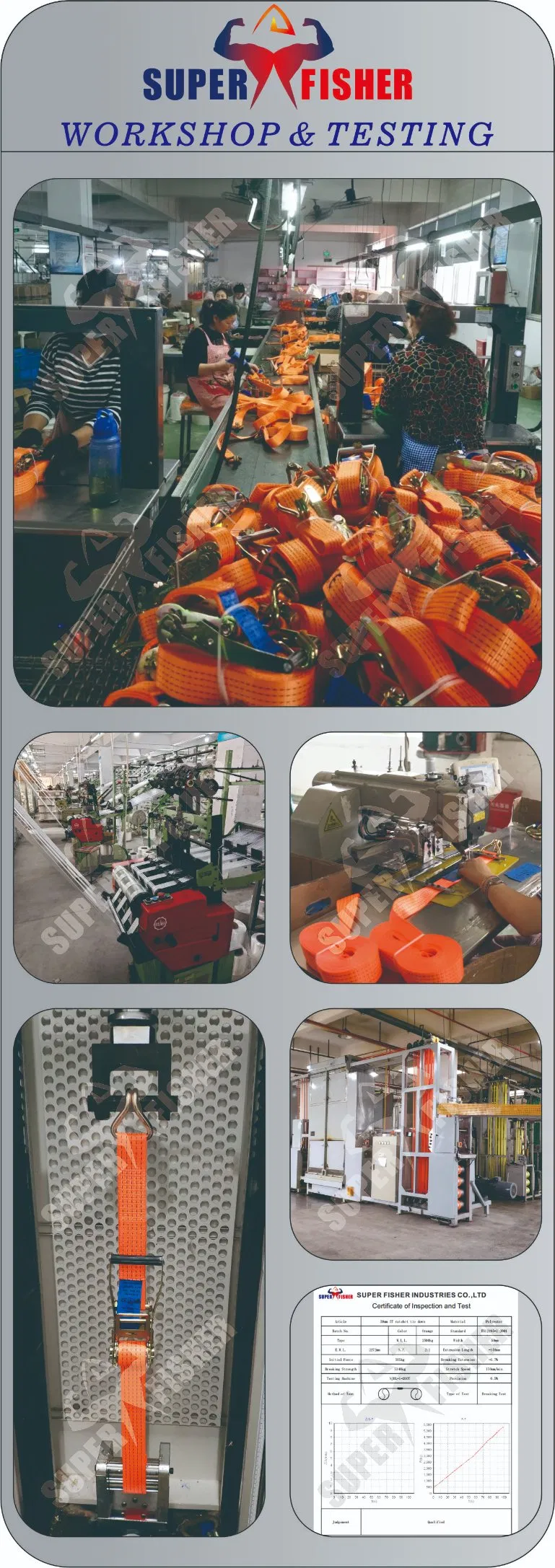

Workshop & Testing
