SF-B
SUPER FISHER / OEM
| Quantity: | |
|---|---|

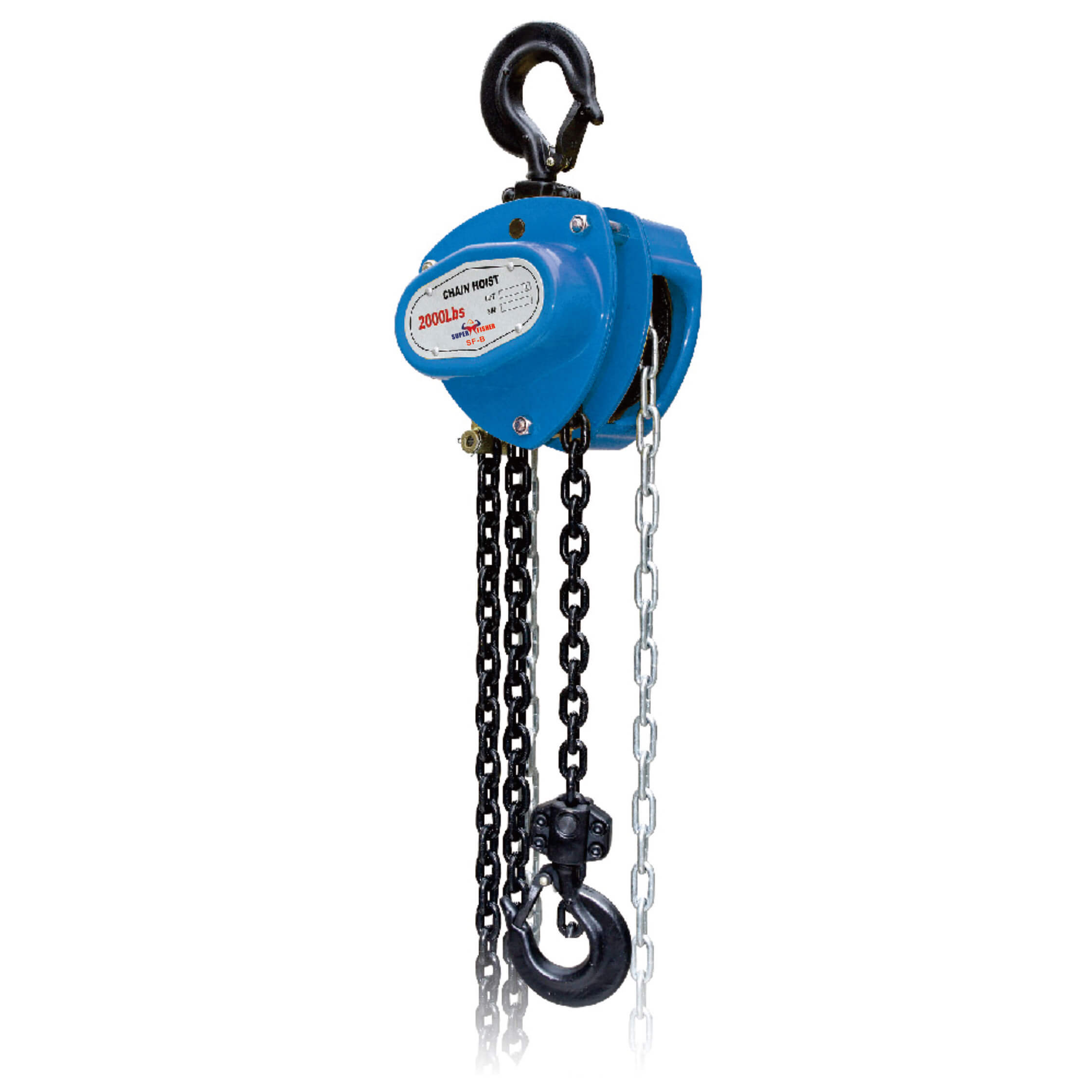

Hand Pulling Manual Chain Hoist with G80 Load Chain & Reinforced Hook
->The hoists tested at 1.5 times of WLL.
->Hoist has overload protection system.
->Chain hoist Capacity range from 0.5ton to 30 ton
-> Compact sized design product suitable for all application.
->Heavy duty guide rollers for avoiding slippage of load chain.
->Hook with safety latch securely can rotate freely 360 degrees.
->Machined chain sprocket and gears provide smoother,more efficient operation.

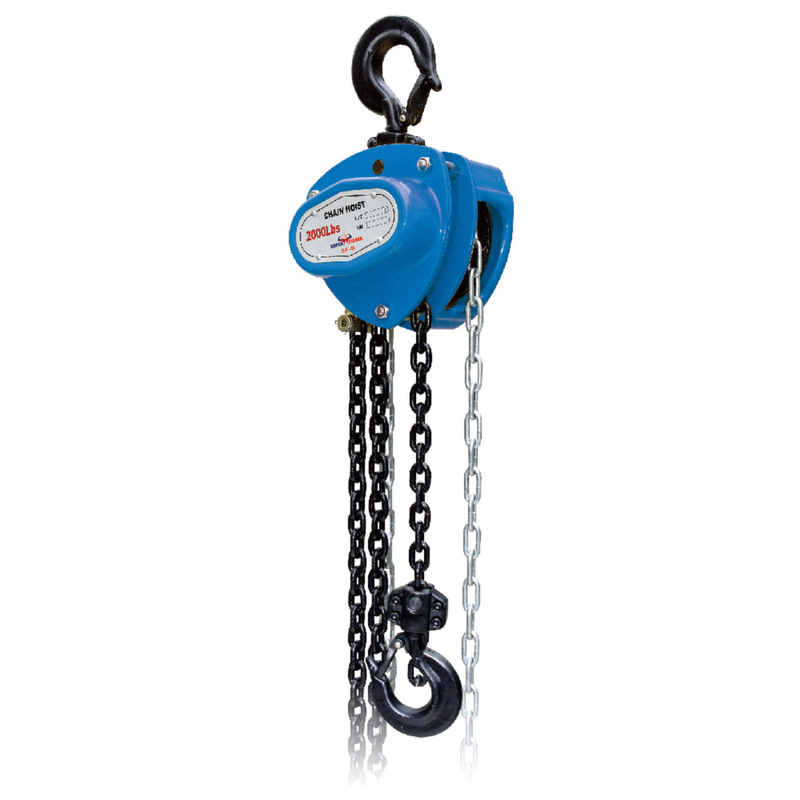

Production Picture
Production Advantage
1.Safe and reliable in operation with minimum maintenance.
2.High efficiency and small hand pull.
4.Fine appearance with small size.
3.Light weight and easy handling.
5.Durability in service.

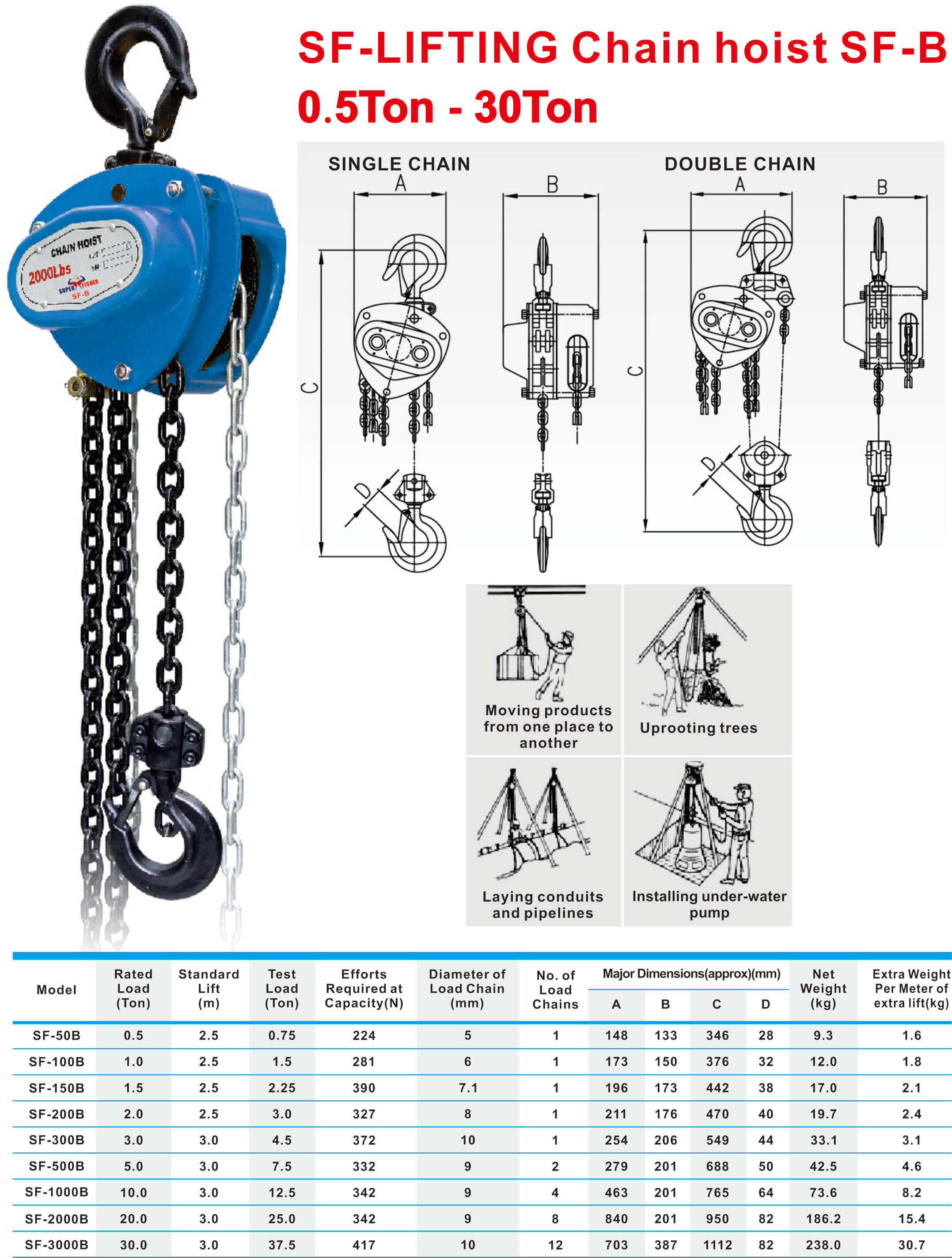

Technical Parameters
| Model | Rated load(Ton) | Standard Lift(m) | Test Load(Ton) | Efforts Required at Capacity(N) | Diameter of Load Chain(mm) | No.of Load Chains |
| SF-50B | 0.5 | 2.5 | 0.75 | 224 | 5 | 1 |
| SF-100B | 1.0 | 2.5 | 1.5 | 281 | 6 | 1 |
| SF-150B | 1.5 | 2.5 | 2.25 | 390 | 7.1 | 1 |
| SF-200B | 2.0 | 2.5 | 3.0 | 327 | 8 | 1 |
| SF-300B | 3.0 | 3.0 | 4.5 | 372 | 10 | 1 |
| SF-500B | 5.0 | 3.0 | 7.5 | 332 | 9 | 2 |
| SF-1000B | 10.0 | 3.0 | 12.5 | 342 | 9 | 4 |
| SF-2000B | 20.0 | 3.0 | 25.0 | 342 | 9 | 8 |
| SF-3000B | 30.0 | 3.0 | 37.5 | 417 | 10 | 12 |
