SF-VL
SUPER FISHER / OEM
| Quantity: | |
|---|---|

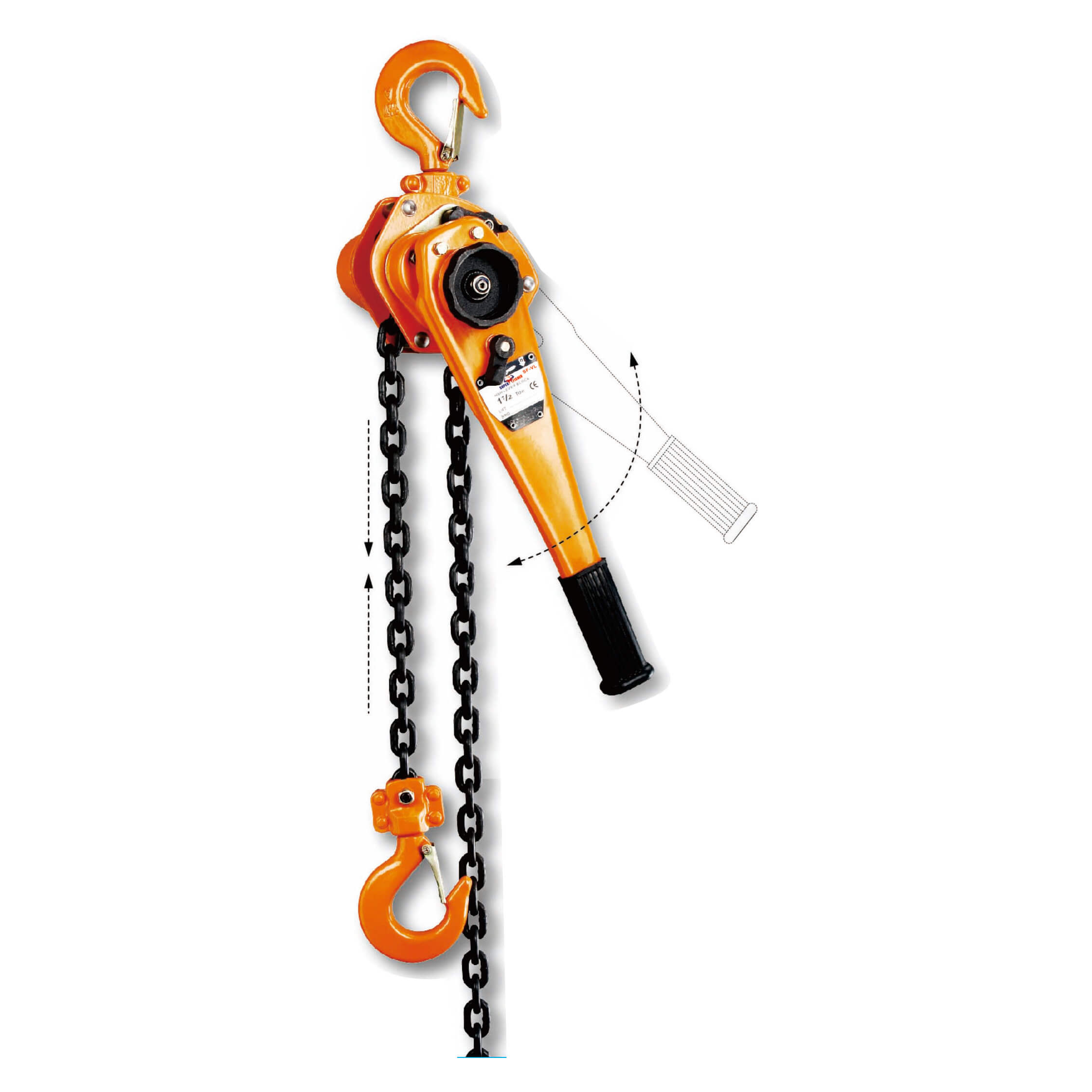

Hand Pulling Manual Lever Hoist with G80 Load Chain & Reinforced Hook
The compact and lightweight premium class ratchet hoist!
Designed for demanding applications.
- Tough and shock-resistant housing
- Forged hooks with reinforced safety latch
- Double safety free chaining device, optimized for fast height adjustment
- Optimized lever with improved ergonomics and reinforced cross-section
- High quality powder coating
- All unpainted parts with high-grade corrosion protection
- Low-wear sintered brake linings
- Ratchet disc and pawl with additional wear-and corrosion protection
- Load wheel with needle bearing
- Extensive spare parts and maintenance service
Production Picture
Production Advantage
1.Safe and reliable in operation with minimum maintenance.
2.High efficiency and small hand pull.
4.Fine appearance with small size.
3.Light weight and easy handling.
5.Durability in service.

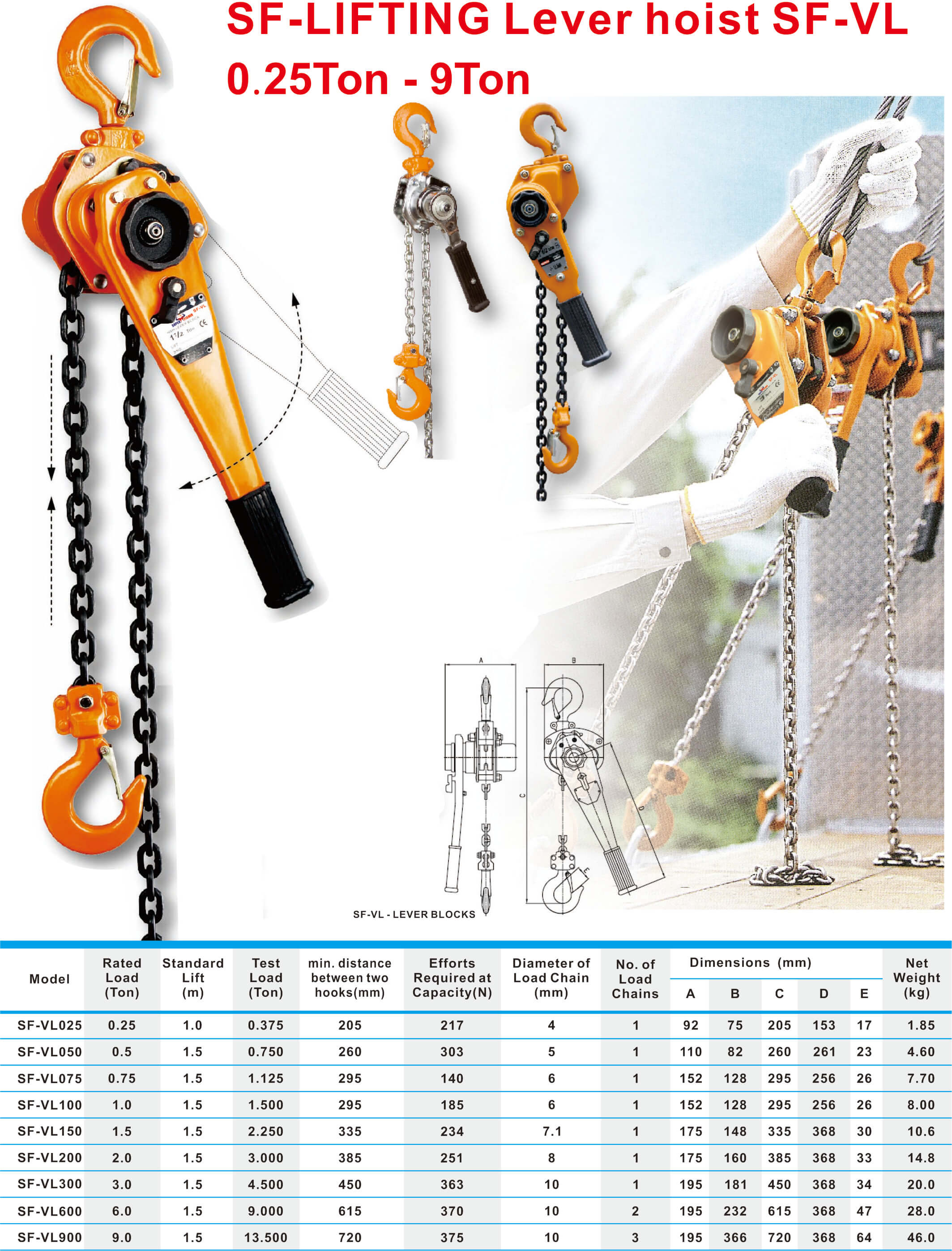

Technical Parameters
| Model | Rated load(Ton) | Standard Lift(m) | Test Load(Ton) | Efforts Required at Capacity(N) | Diameter of Load Chain(mm) | No.of Load Chains |
| SF-VL025 | 0.25 | 1.0 | 0.375 | 205 | 4 | 1 |
| SF-VL050 | 0.5 | 1.5 | 0.750 | 260 | 5 | 1 |
| SF-VL075 | 0.75 | 1.5 | 1.125 | 295 | 6 | 1 |
| SF-VL100 | 1.0 | 1.5 | 1.500 | 295 | 6 | 1 |
| SF-VL150 | 1.5 | 1.5 | 2.250 | 335 | 7.1 | 1 |
| SF-VL200 | 2.0 | 1.5 | 3.000 | 385 | 8 | 1 |
| SF-VL300 | 3.0 | 1.5 | 4.500 | 450 | 10 | 1 |
| SF-VL600 | 6.0 | 1.5 | 9.000 | 615 | 10 | 2 |
| SF-VL900 | 9.0 | 1.5 | 13.500 | 720 | 10 | 3 |
